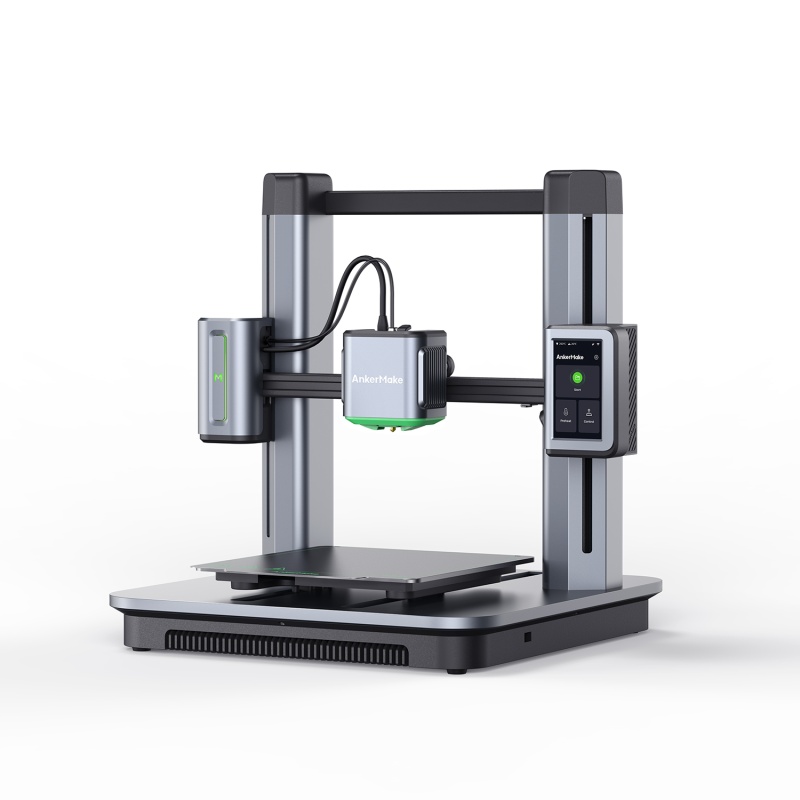

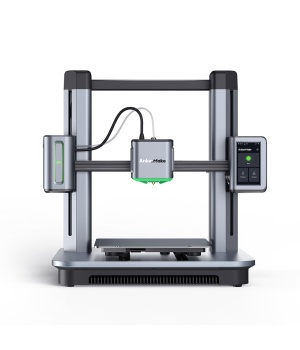

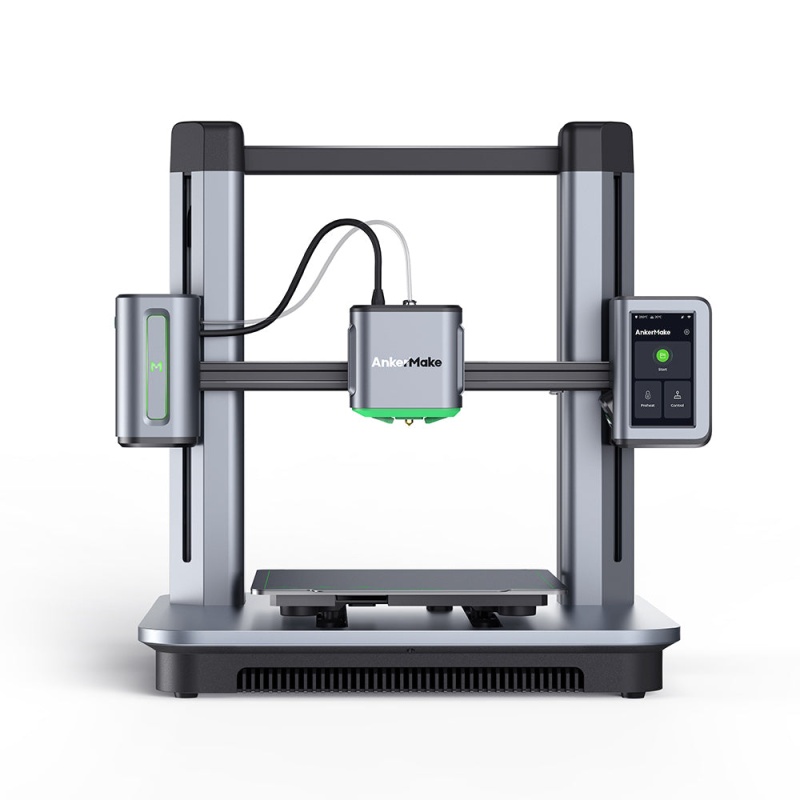

Start your prints with M5 - Fast and high-quality

The new innovative Plug&Play 3D printer has high printing speed and an AI camera.

Powered by PowerBoost™.

Achieve high-speed precision thanks to PowerBoost™, a system that optimises energy transfer in the Y-axis. PowerBoost™ uses a powerful stepper motor, a dual-belt drive shaft and a motion stabilisation algorithm to generate additional energy for high-speed prints.

Standard speed: 250 mm/s
Accelerated speed: up to 2,500 mm/s².

AnkerMake M5 video

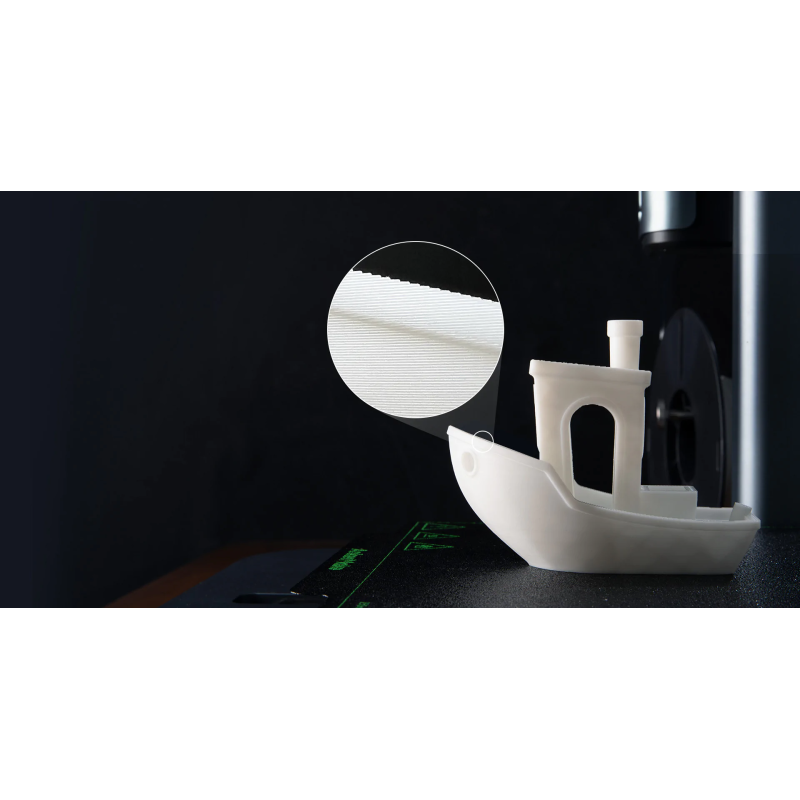

Precise 0.1 mm detail accuracy

Don't compromise on stable quality, even when printing at 5x speed. AnkerMake M5 frees you from sanding and ensures a smooth surface in every thick layer.

New Ultra-Direct Extruder

With the redesigned Ultra-Direct Extruder, you'll feel the fine details after printing 5 times faster. The shortened distance between the extruder and nozzle reduces errors and improves control. At the same time, an algorithm refined in more than 2,000 tests in the AnkerMake lab analyses and adjusts the extrusion.

3.1X Extrusion

Higher multi-stage transmission ratio

The foundation for high-speed pressure is the improved multistage gear system with a reduction ratio 9.37 and torque of 0.8 N-m. The strong torsion exerts pressure on the melt chamber to accelerate extrusion.

1.5X melting capacity

Larger heating block

The 60W heating block quickly raises the nozzle temperature to 392°F (200°C) with 1.5X the efficiency of other printers. The heat ensures filament flows smoothly when printing at 250mm/s at high speed.

1.3X cooling

More air intake volume

The dual cooling system uses two fans to expel 1.3 times the air volume of other printers at maximum speed. Cooling avoids stringing and ensures the model cools quickly.

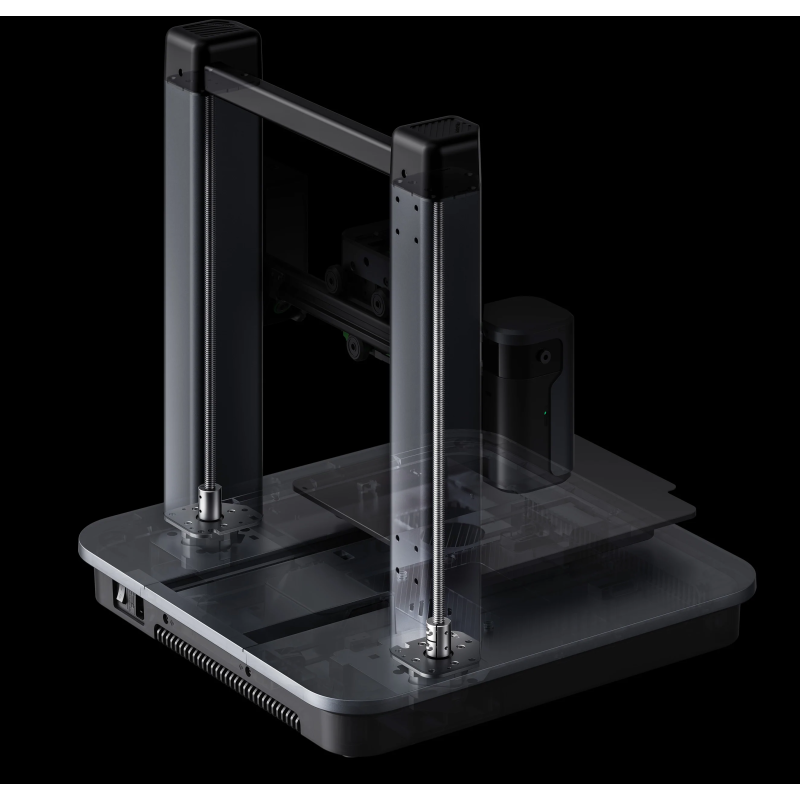

Integrated die-cast aluminium alloy

The integrated die-cast aluminium alloy structure and Z-axis design increase the base's weight and lower the device's centre of gravity. The design makes the pressure more stable for high speed and turbo acceleration. This also reduces base installation errors and improves printer accuracy.

Powerful processing

The M5 has two processors, including the XBurst CPU for intelligent 3D printing and the Marlin CPU for routine processing. With the added power, the M5 keeps track of your prints so your model matches your design.

• Heterogeneous 3-core CPU (1.2GHz ×2 + 240MHz)
• Specialized in image recognition (VPU, ISP ×2, CIM).
• Designed for artificial intelligence of things (AIoT)

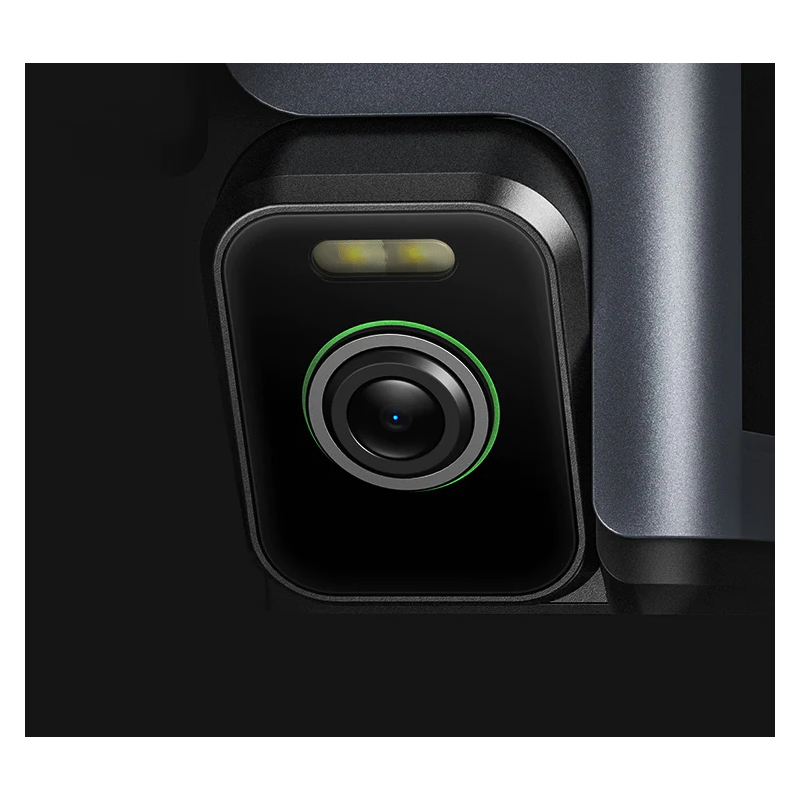

The integrated intelligent camera

• 1080p Full HD resolution
• Real-time monitoring (up to 720p)
• Time-lapse videos (1080p)
• Frame rate: 30 fps

Worry-free printing with M5

AI camera recognition system

The AnkerMake slicer analyses the 3D data of the model before the printing process begins. The AI Recognition System uses the powerful XBurst CPU to check and compare throughout the process continuously.

Errors detected, immediate notification.

Protect against:

• Spaghetti Chaos
• Staggered layers
• Error in the adhesion of the first layer
• Clogging of the nozzle

Live monitoring

With the AnkerMake app, you can monitor the printing process in real-time at any time. Even if it's 3 am, you can check the progress of your print thanks to adaptive light detection algorithms.

Share your timelapse

Delight in your creations and show them off with time-lapses that are easy to share on social media.

Start your prints whenever and wherever you want.

Whenever you have inspiration, you can access your prints no matter where you are. You can even track prints, pause tasks, or change settings.

• AnkerMake Slicer
• AnkerMake App

3D printing made easy - print at home

The integrated design keeps your workspace tidy.

Avoid cable clutter and multiple scattered devices with 1 clean, cohesive design. M5 consists of the base and gantry frame, and the Z-axis design hides all dangling cables from your eyes.

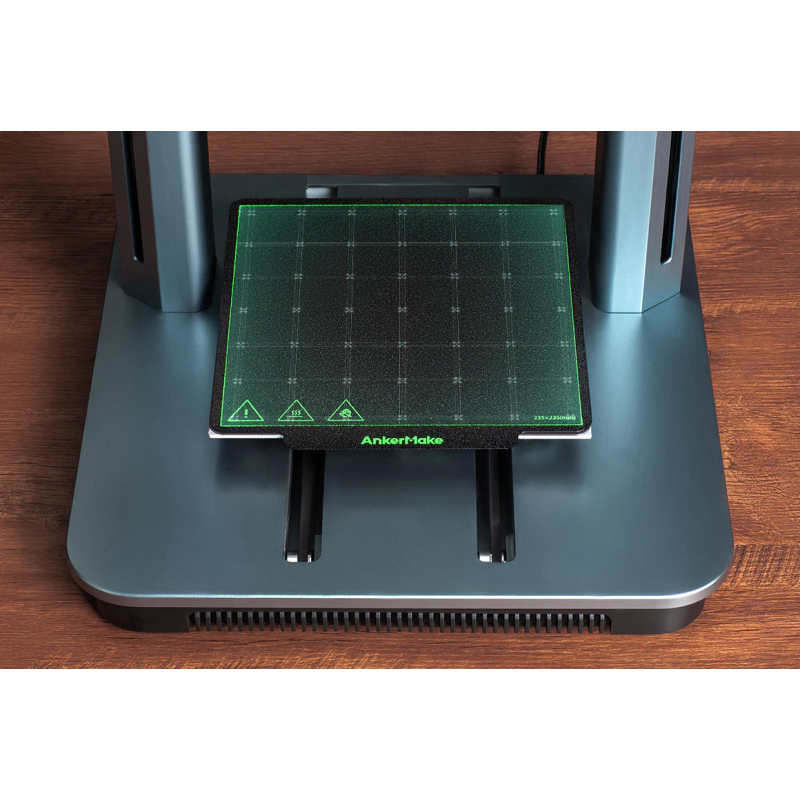

7x7 Auto Leveling

With 7x7 auto-levelling, your prints get accuracy. Sophisticated algorithms calculate a virtual height map to get your print started right. You only need to manually adjust when you change something major like the nozzle or the soft magnetic PEI steel plate.

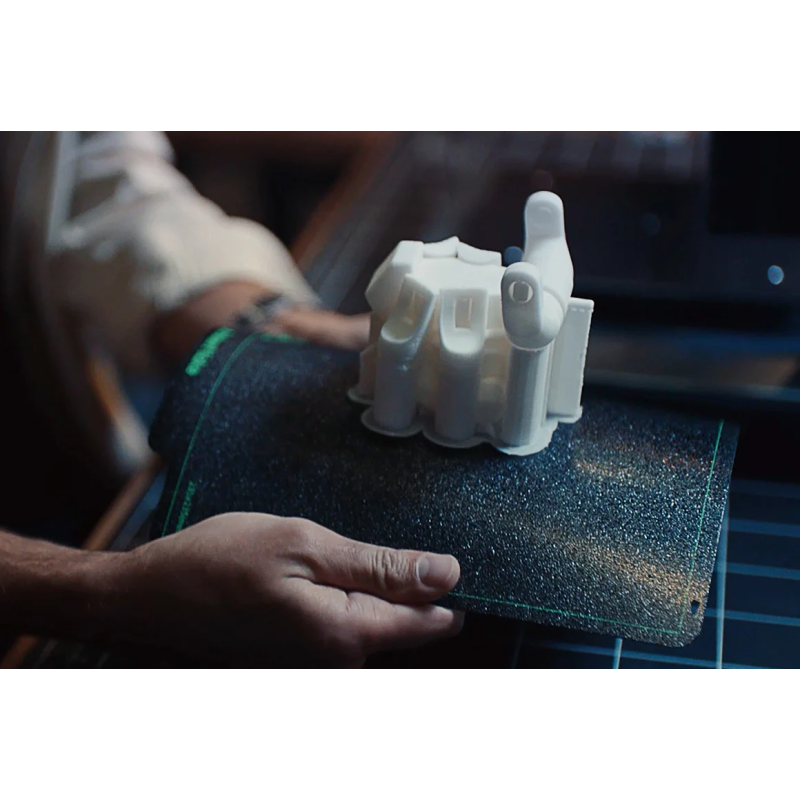

Bendable and scratch-resistant plates

No matter how big or small a print is, the scratch-resistant PEI soft magnetic steel plate can be easily removed by bending it slightly after cooling. And with the magnetic design of the heated bed, you can easily remove and reattach the print sheet.

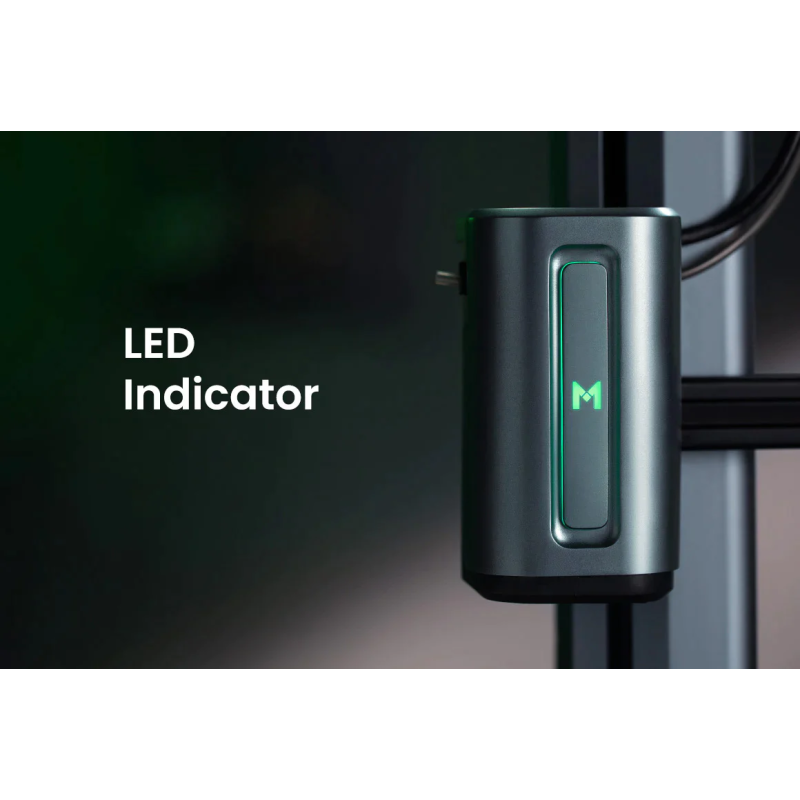

Print status notifications

You can choose how you want to know when something changes on your 3D print. See an LED light 10 meters away, hear a beep, or receive an app notification.

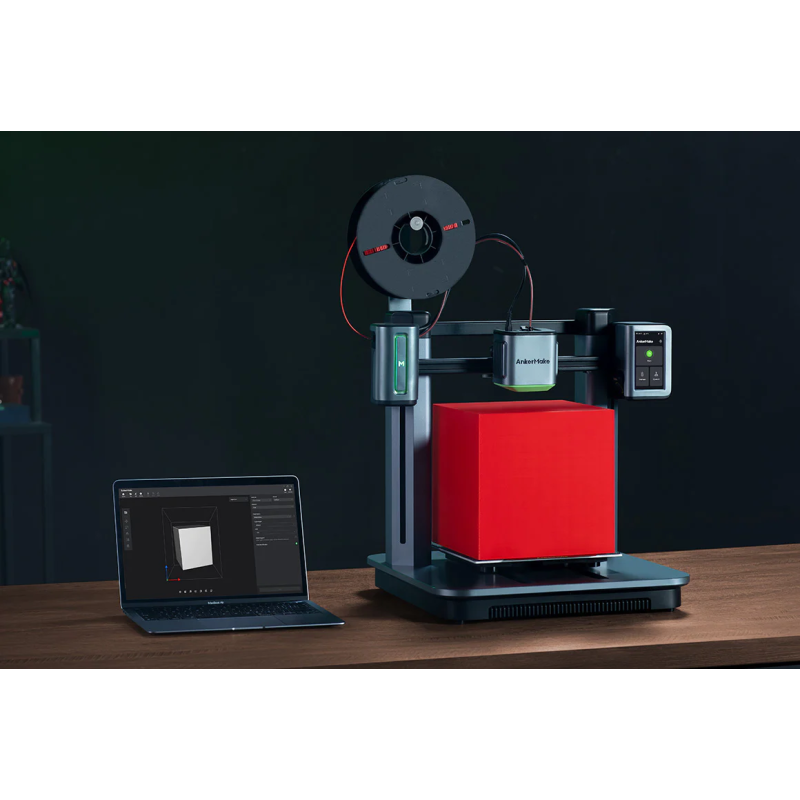

Print large models with high-speed efficiency.

Scale up your prints to a whopping 235×235×250 mm³ and watch the M5 get the job done at 5x speed.

4.3" touchscreen simplifies printing

The smart, colourful LCD touchscreen makes completing the most common tasks easy. You can switch to night mode to save your eyes when working late.

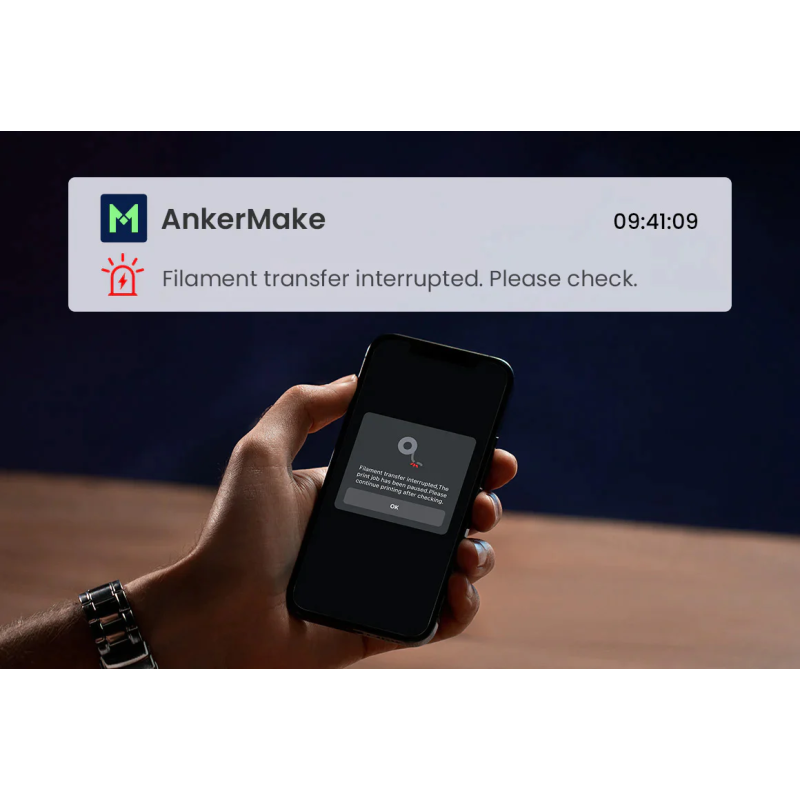

Save material with instant alerts.

Never waste another moment or ounce of filament with low filament and error alerts. The M5 scans before and during printing to ensure the printed result matches your specifications.

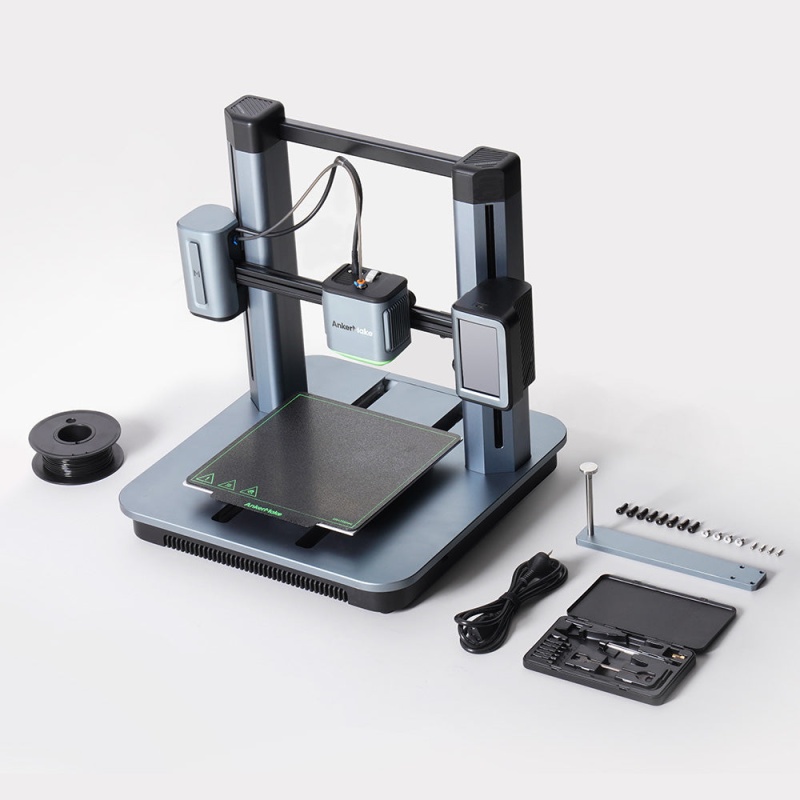

Scope of delivery

• 1x AnkerMake M5 kit
• 1x filament holder
• 1x power cord
• 1x 150g filament
• 1x spare nozzle 0,4mm
• 1x toolset
• 1x Printed user manual

Specifications

Printing parameters

Print volume (L×W×H): 235×235×250 mm³
Standard speed: 250 mm/s
Acceleration: 2.500 mm/s²
Operating speed: 50-250 mm/s
Pressure accuracy: ±0.1 mm
Nozzle diameter: 0.4 mm (Compatible with 0.2/0.6/0.8 mm)
Filament diameter: 1.75 mm
Printing materials: PLA/PETG/TPU/ABS
Extruder temperature: Maximum 500°F (260°C)
Hot plate temperature: Maximum 100°C (212°F)

Printing Features

Extruder: Ultra-direct extruder
Partial cooling: Double cooling fan
Extrusion gear: Double hardened steel
Heated platen: PEI soft magnetic steel
Auto leveling: Auto 49 (7×7) points
Thread sensor: Broken material detection
Continue printing: Support

Electronics

CPU: Dual XBurst(1.2GHz) + XBurst 0(240MHz)
Operating system: Linux
EMMC: 8GB
Connectivity: Wi-Fi (app, AnkerMake Slicer), Type-C USB flash drive; OTA upgrade.
Display: 4.3-inch touchscreen
Remote control: AnkerMake app, AnkerMake Slicer.
Voice assistant: Google Assistant, Amazon Alexa (print status check).
Power: 350W
Power input: AC 100-240V

Camera

Detection: AI detection
Real-time monitoring: Up to 720p
Time-lapse videos: 1080p
Timelapse videos frame rate: 30fps
Night vision: Infrared + LED

Software

Slicer software: AnkerMake Slicer (macOS, Windows), Simplify 3D, Ultimaker Cura, PrusaSlicer
File input format: STL, OBJ
Supported operating systems: macOS, Windows

Housing

Machine size: 502×438×470 mm (without filament holder)
Net weight: 27.3 lb / 12.4 kg
Gross weight: 32.6 lb / 14.8kg

Printing Technology: FFF - FDM

Buildvolume: 20 - 30 cm

Extruder: Singel
