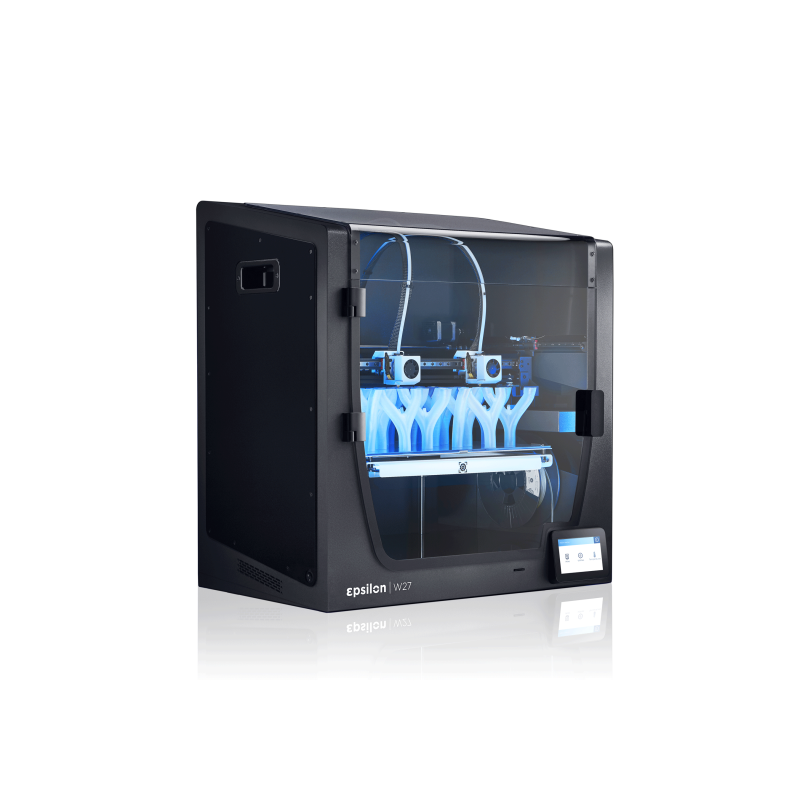

BCN3D Epsilon W27 Gen2, demo printer

BCN3D Epsilon W27 Gen2, demo printer

Kaubamärk:
Tootekood: 1016
Ühik: tk
Tarneaeg: 3
Hind: 7313,90 € 5339,15 €
Kogus: tk Lisa korvi


Antud müügis oled demo printer, on täielikult uueväärne ja kõik on suurepärases korras koheselt kasutamiseks - võimalus väga hea hinnaga saada BCN3D uus mudel Epsilon W27!

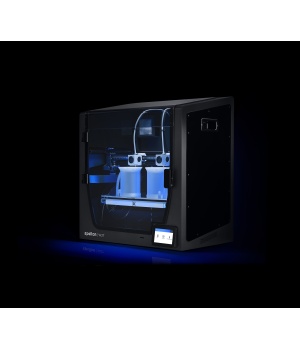

BCN3D Epsilon W27

BCN3D Epsilon on professionaalidele mõeldud 3D printer, millega on võimalik printida igat detaili väga suure täpsusega. Sellel 3D-printeril on IDEX (Indenpendent Dual Extrudel), mis võimaldab 3D-printida erinevaid tehnikaid ja materjale samal ajal kasutades (erinevad materjalid, värvid, tugistruktuurid, ..).



Võimalik on kasutada laias valikus erinevaid kuumpäid (müüme eraldi), mis aitab saavutada just Teie töö jaoks parima kvaliteedi. Te saate kasutada isegi samas töös erineva läbimõõduga kuumpäid.





The Epsilon W27 is a powerful professional 3D printer, designed to deliver solid parts with industrial-grade materials, thanks to features such as its passive heated chamber and full enclosure. Powered by our Independent Dual Extruder (IDEX) system, the Epsilon W27 delivers exceptionally strong functional parts with quality and precision.

The main product features:

  • Heated bed up to 120ºC to print with engineering-grade materials and avoid warping issues."
  • The e3D™Hotends have been carefully designed to deliver the smoothest and most reliable extrusion.
  • The BCN3D Epsilon Series is equipped with a multilingual touchscreen that guides you through its advanced features.
  • Sturdy aluminium frame for guaranteed strength and durability on your workfloor.
  • The Bondtech™ Extruders features high-tech dual drive gears, offering more control, sharper details, and superior performance for any filament type.
  • Filament Runout Sensor that detects when the filament is finished and pauses the printing process until it is reloaded again.



Create big functional parts with solid mechanical properties.
Unlock a wide range of technical applications with the industrial-grade BCN3D Filaments, FormFutura filaments or work confidently with any third-party material of your choice thanks to our Open Filament System.

Powered by IDEX Technology
Developed by BCN3D, the disruptive Independent Dual Extrusion System technology makes the difference in 3D printing.

Mirror mode
A mode that enables printing mirrored designs symmetrically and speeds up iteration."

Duplication mode
A setting that prints identical models simultaneously, doubling the production capacity.

Soluble supports mode
A process that prints soluble parts to create intricate structures and avoid geometric limitations.

Multimaterial mode
A technique that makes it possible to print two different materials and combine their properties.



Construction an Technical Details



Usable Filament Diameter

2,85 mm

Nozzle Temperatur Max

300 °C

Open Filament System

Yes

Extruder Typ

bowden Bondtech dual drive gears

Build Area

420 mm x 300 mm x 220 mm

Dual Build Area

420 mm x 300 mm x 220 mm

Heated Build Plate

Yes

Build Plate Temperature Max

120 ºC

Build Plate Attachment

clamp

Build Chamber During Process

Open or Closed

Build Chamber Heated

Yes, max 60°C

Filament Chamber Closed

Yes

Extruder Number

2

Extruder Construction Typ Dual

IDEX - Independent Dual Extruders



Installation Space / Requirements



Total Mass

530 mm x 690 mm x 750 mm

Total Weight

33 kg

Power Consumption Max

840 W

Voltage

AC: 84 V, 3,6 A - 240 V, 1,3 A (50-60 Hz)



Equipment



Hepa Filter

Yes

Door Sensor

Yes

Filament Runout Sensor

Yes

Powerloss Fail Safe

Yes

TouchScreen

Yes



Connection



Memory Card

Yes

Ethernet-Port

Yes

WLAN

Yes

Cloud Control

Yes



Accuracy



Layer Height

0,05 mm - 0,5 mm



Shipping



Shipping Box

600 mm x 800 mm x 1090 mm

Shipping Weight

46 kg
