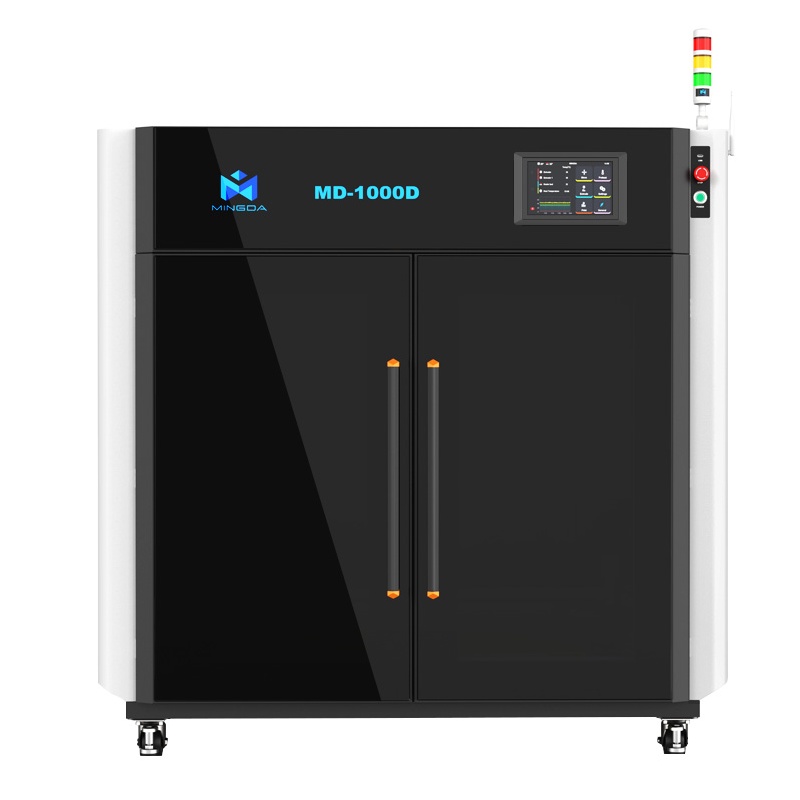

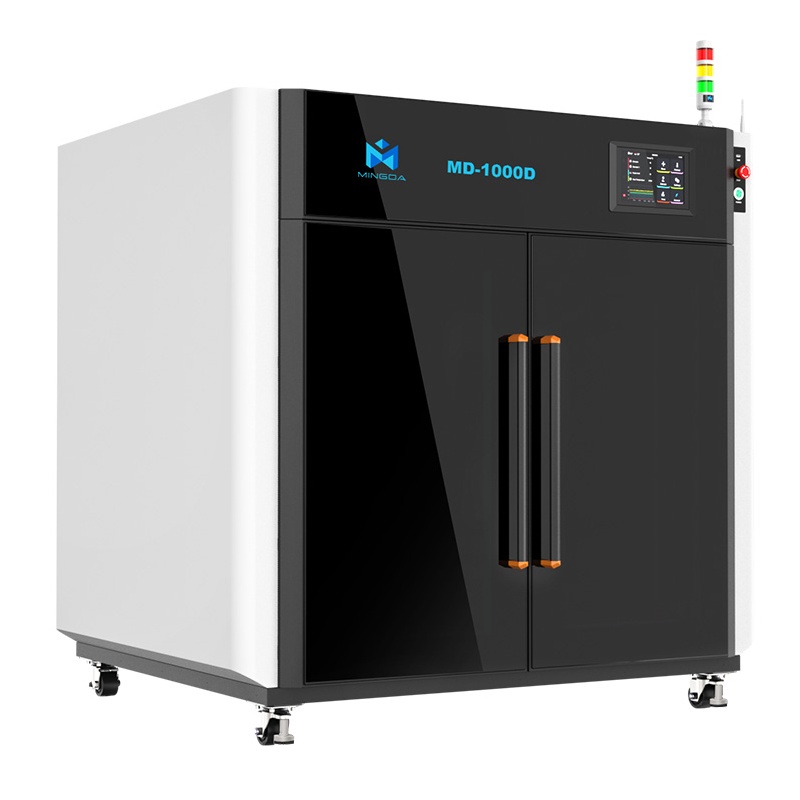

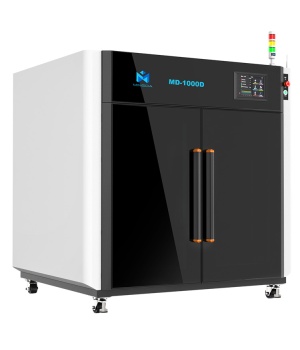

MINGDA MD-1000D

Kaubamärk:

Tootekood: MD-1000D
Ühik: tk
Tarneaeg: 30 päeva

Hind: 40258,78 €

Kirjeldus Failid

Super Large Size 5X Faster Printing Speed Industrial Grade 3D Printers

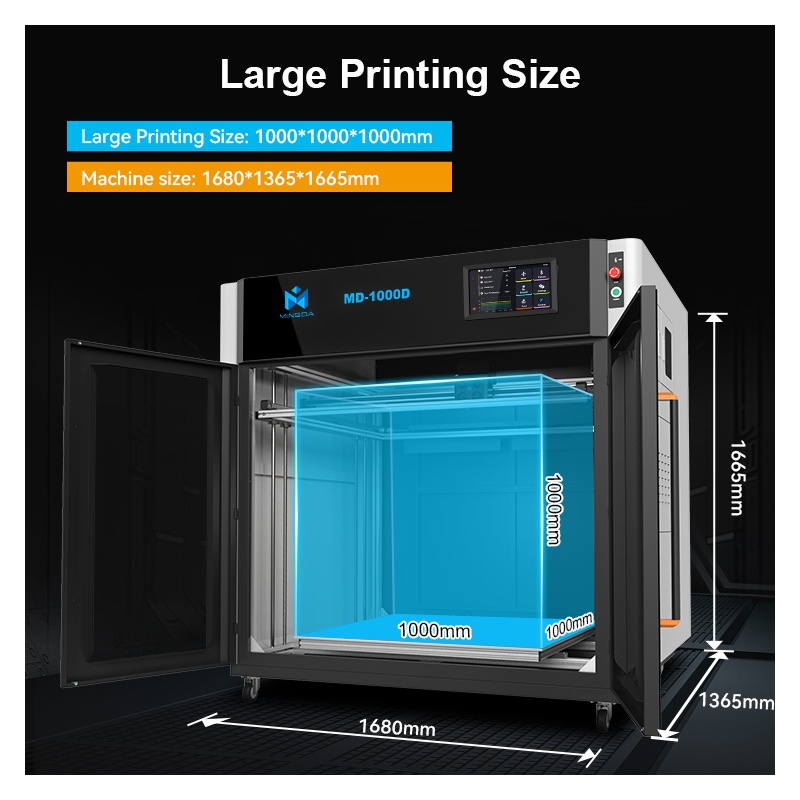

1. Large build volume:1000x1000x1000mm

2. Hands Free Auto-leveling

3. Flexible PEI platform

4. Compatible with lots of engineering materials

like Nylon, Nylon carbon fibre,carbon fibre and glass fibre mixed material and support materials like PVA, S-multi, S-HtpA,etc

5. Dual extruder system

6. High-temperature hot end up to 350 degrees

7. New Air filtration system

8.300mm/s print speed

9.Camera&WIFI

10. Input shaper

11. Camera calibration

The MD-1000D boasts a printing volume of up to 1000*1000*1000mm and is a fully enclosed industrial 3D printer designed for producing full-sized large parts, including high-strength functional prototypes, factory fixtures, models, and moulds, as well as some production parts.

Supported by HIWIN linear guides, durable custom CNC parts, and Mingda's self-developed slicing software, the MD-1000D consistently delivers fast printing speeds, high precision, and good print quality. If you are looking for an industrial-grade large-scale 3D printer for prototyping and engineering-grade materials, MD-1000D is undoubtedly your best choice.

MD-1000D

High Precision, Fast Printing of Large Complex Industrial Parts

5X Speed, Breakthrough in Printing Efficiency Once Again

MD-1000D printing speed up to 300mm/s, 10000mm/s ² Peak acceleration, only 0.02s speed up from 0 to 250mm/s, achieving ultra-high efficiency printing.

Automobile seats Case Sharing

Dual Printheads Assets in Printing Complex Structural Models with Remarkable Precision.

This support-focused feature enables users to print with high-performance materials and breakaway materials. Complex models with overhanging elements often require support structures, especially when working with advanced materials. By utilizing the second extruder for support printing with a breakaway filament, the MD-1000D simplifies support removal, ensuring a smooth and successful printing experience.

Support materials can be printed.

Print two colours simultaneously.

It supports TPU95A and HtPA-CF while printing TPU and PETG simultaneously.

Supports water-soluble filament printing

3D Printer Materials Suitable for Your Applications

The hot end temperature can reach up to 350℃, allowing for the printing of engineering-grade materials such as carbon fibre, glass fibre, and nylon composites, in addition to common materials.

Common filament: PLA, TPU, PETG etc;
Engineering filament: HtPA, PET-GF, PET-CF, PA12-CF, HtPA-GF, HtPA-CF, HtPA-GF25,HtPA-CF25,etc
Support filament: S-Mulit, S-HtPA, etc

Get to Know the MD-1000D 3D Printer

High Accuracy at Fast Printing Speeds

● High Precision

Using HIWIN linear rails structure and closed-loop motor design to ensure the stability and accuracy of the printing process

● Closed-loop Motors

Using a closed-loop motor, it has fast response speed, no inertia and no delay. Closed-loop control overcomes the out-of-step problem. Heat and noise are significantly reduced. It enables printing models with ultra-high performance and speed.

Exceptional Stability in Long-time Printing

● Customized CNC sheet metal integrated molding

Ensures the machine's stability, greatly extending its lifespan. High-quality profiles and hardware guarantee sustained and efficient operation. MINGDA 3D printers, developed in 2012, have been in operation for over 11 years, with each machine averaging over 35,000 hours of printing time, showcasing unparalleled stability.

Super Easy to Use

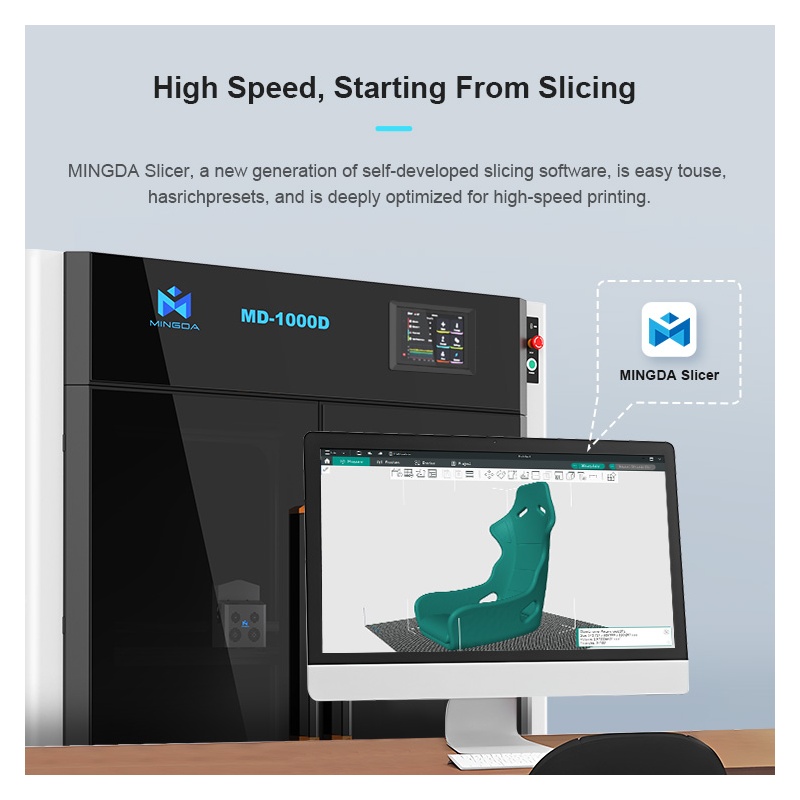

● MINGDA OrcaSlicer

MINGDA OrcaSlicer is a next-generation slicing software we independently developed. Our engineers have rigorously tested and validated all slicing profiles for materials within the software. No parameter adjustments are needed before printing. Enjoy effortless, high-quality printing.

● Ready to Print

Fully assembled and calibrated to its optimal state before leaving the factory. Upon receiving the machine, plug it in and start using it without requiring any prior experience.

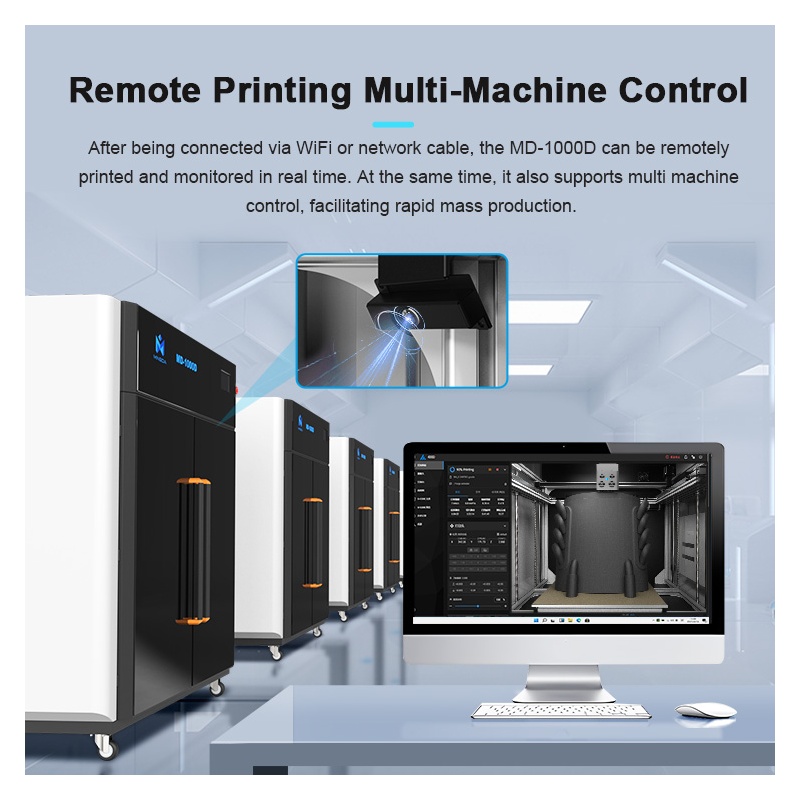

Remote Printing Multi-Machine Control

After being connected via WiFi or network cable, the MD-1000D can be remotely printed and monitored in real-time. It also supports multi-machine control, facilitating rapid mass production.

Hands-Free Auto Leveling

Preparation before printing is made more convenient, as well as accurate first-layer detection.

PEI Flexible Printing Platform

It has strong adhesion, high temperature resistance, and is suitable for various consumables. It can be easily removed by bending.

MINGDA Self-Developed Core Hardware

● Delivers Speedy Smooth Performance.

This high-performance 64-bit self-developed motherboard, powered by the 6-core CPU, ensures fast processing of data and rapid completion of 3D printing tasks. With 32GB of memory, you can easily store, export, and print large files.

Self Check When Power On

When powered on, it automatically checks the status of the extruder, hot bed, camera, automatic leveling, fan, and other components; if there are any abnormalities, a prompt is displayed on the printer screen for quick and convenient processing.

Resume Printing and Filament Detection

The printer will automatically remember its current position and save printing data. In the event of a sudden power outage, it will lower the platform and retract the filament. Upon power restoration, seamless printing will resume from the last stopping point.

When filament runs out, the printer stops printing and issues a warning to replace it, preventing wasted prints.

10-inch IPS High-definition Large Screen

MD-1000D has a 10-inch IPS high-definition computer screen. Compared with traditional LCD screens, it can see bright, saturated, and natural high-quality images from any angle. At the same time, it is more environmentally friendly and saves electricity.

Support multiple languages

Applicable Industries

Automotive industry

Prototyping and design

Functional prototyping

Gas and Fluid-Carrying Components

Portrait

Medical Industry
