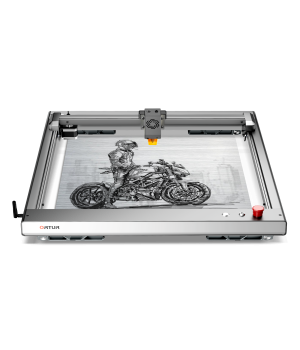

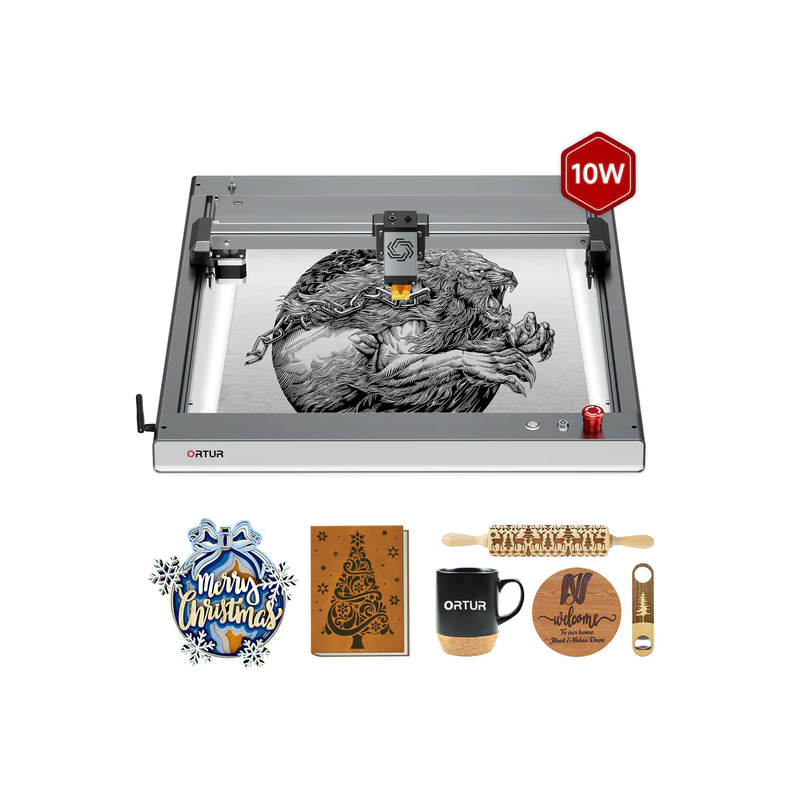

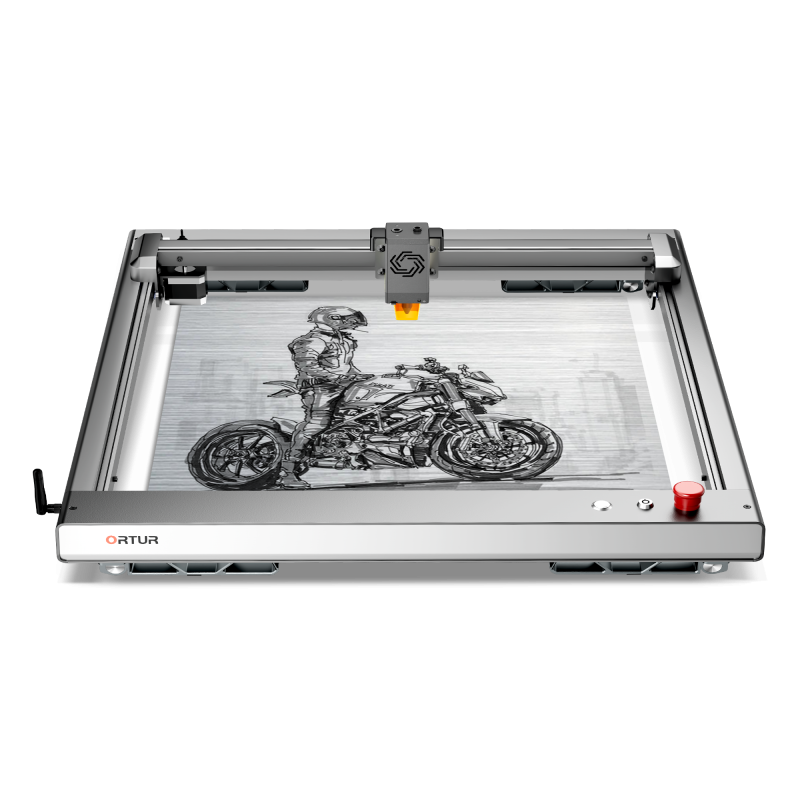

ORTUR LASER MASTER 3 - LASER ENGRAVING & CUTTING MACHINE - 10W

ORTUR LASER MASTER 3 - LASER ENGRAVING & CUTTING MACHINE - 10W

Kaubamärk:
Tootekood: 763289360066
Ühik: tk
Tarneaeg: 7 päeva
Hind: 1024,80 €
Kogus: tk Lisa korvi


Graveerimiseks oleks vajalik komplekt lisada OLM3 seadmele:

  • Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
  • Platform (ORTUR LASER ENGRAVING PLATFORM)
  • Enclosure (ORTUR ENCLOSURE 2.0)
  • Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)

Lõikamiseks  oleks vajalik komplekt lisada OLM3 seadmele:

  • Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
  • Platform (ORTUR LASER ENGRAVING PLATFORM)
  • Enclosure (ORTUR ENCLOSURE 2.0)
  • Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)
  • ORTUR AIR PUMP 1.0

Kui soovide suuremat pinda lõigata/graveerida:

  •  ORTUR LASER MASTER 3 EXTENSION KIT

Muudeks töödeks head abilised:

  • ORTUR LASER MASTER 3 EXTENSION KIT
  • ORTUR Y-AXIS ROTARY CHUCK

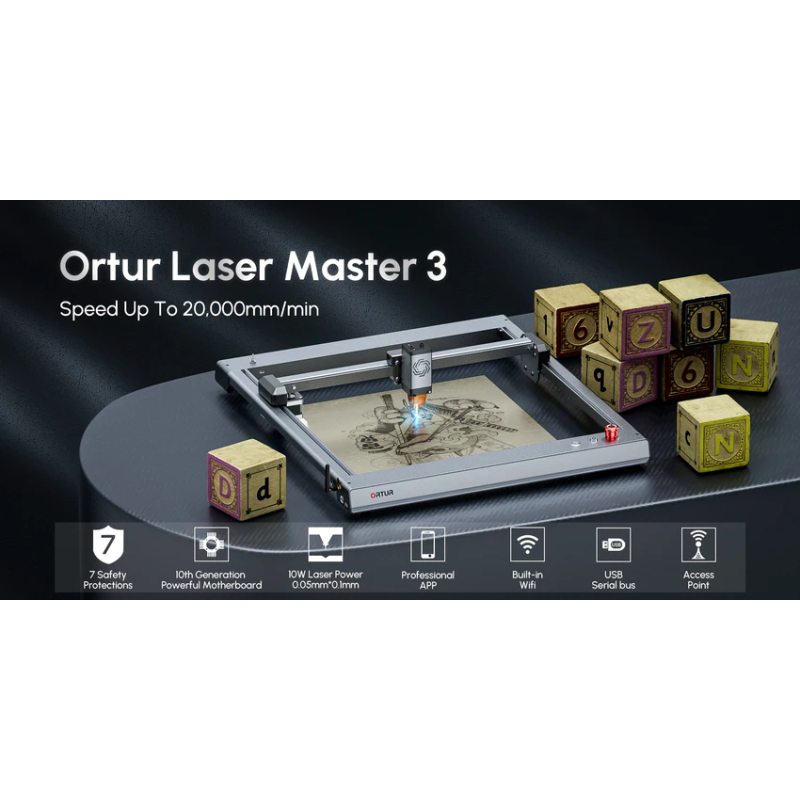

This Flagship Laser Engraver is safer, faster and more intelligent, saving time and improving the user experience. The high-quality silent motor reduces vibration and noise and prolongs the motor's life.



Highlights:

  • Engraving Speed up to 20,000 mm/min.
  • Depth of 8 mm field – Support 30mm cutting.
  • 0.01 mm Precision – Engrave on narrow borders easily.
  • ORTUR APP' Laser Explorer' – Take a photo and engrave it every time.
  • 7 Safety Features – create a safe operating state.
  • External Interfaces – USB, SD card, wifi, AP, U disk.
  • Automatic maintenance reminder – less time on maintenance.

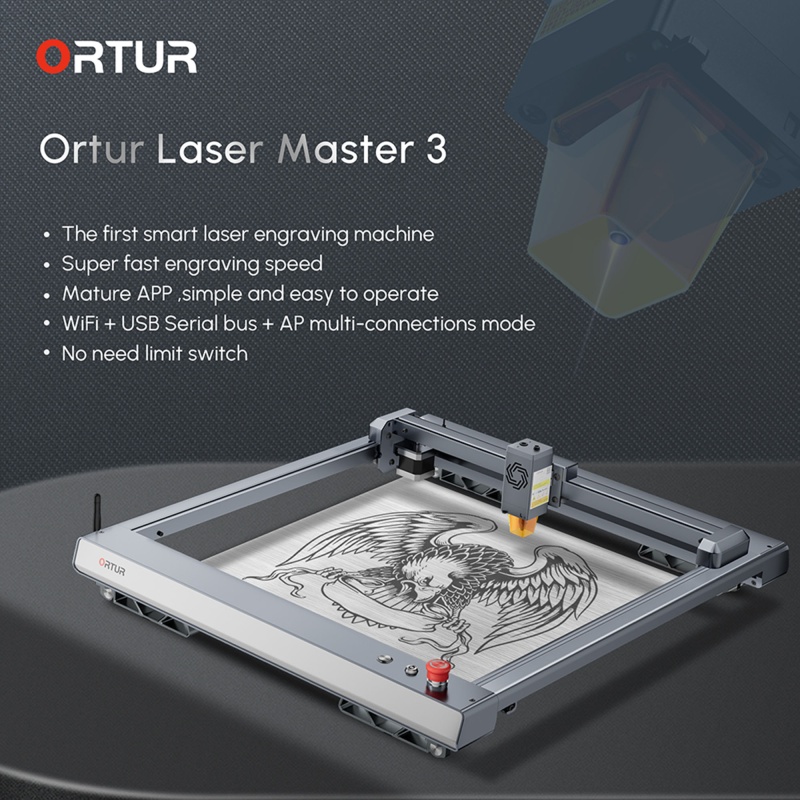

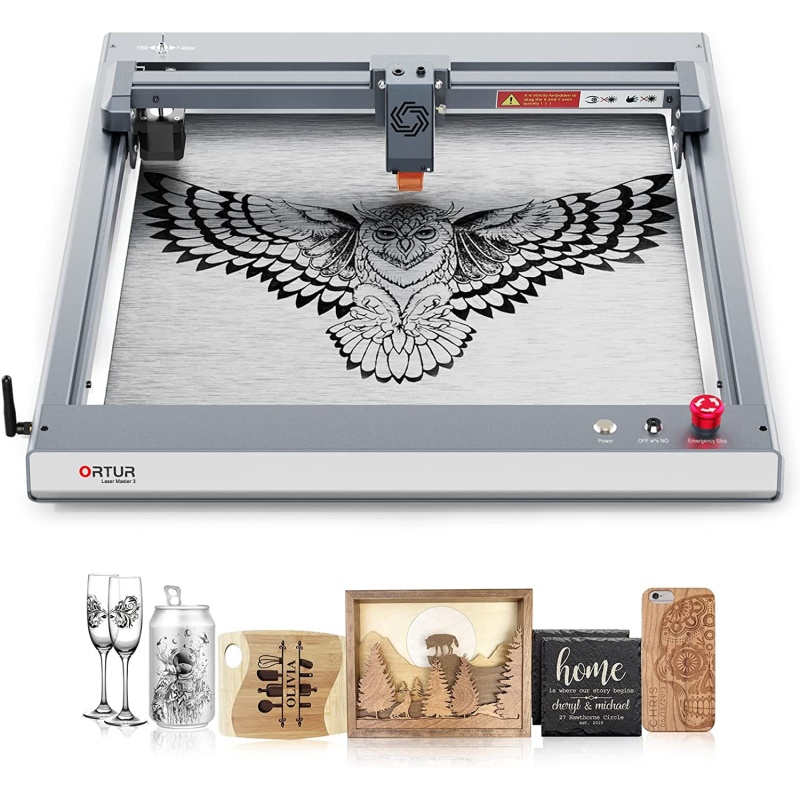

A successor to the OLM2, the Ortur Laser Master 3 is one of the world's best 10-watt diode laser engravers. It can engrave at a soaring speed of 20000mm/min without compromising the quality of the results. Except for the user-friendly APP, it is also easy to assemble. It has an improved frame for faster and more accurate engraving and cutting, which will cater to the needs of both professionals and business users.

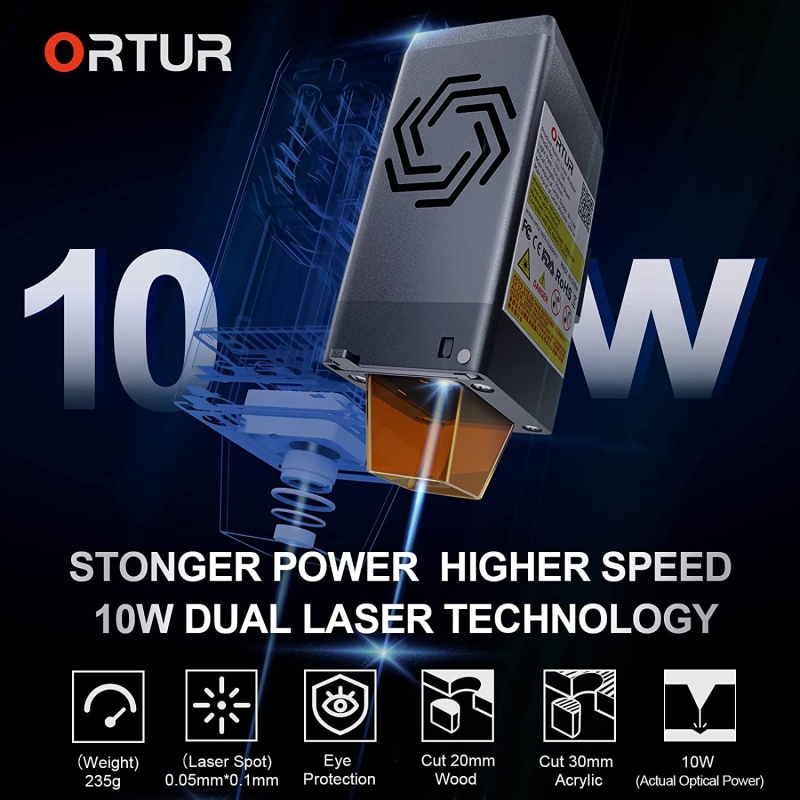

10W LU2-10A Laser Module

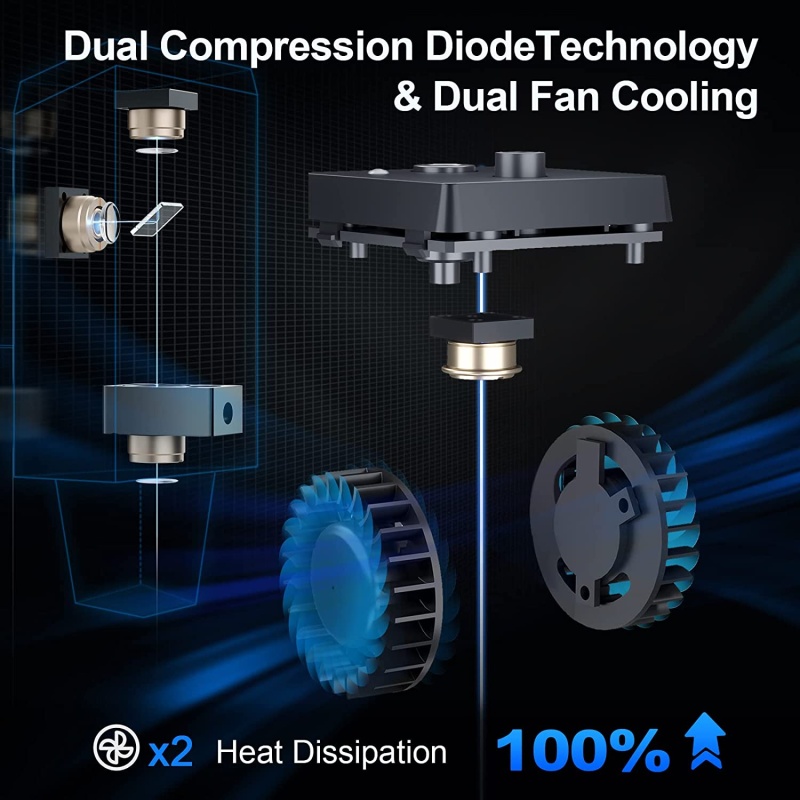

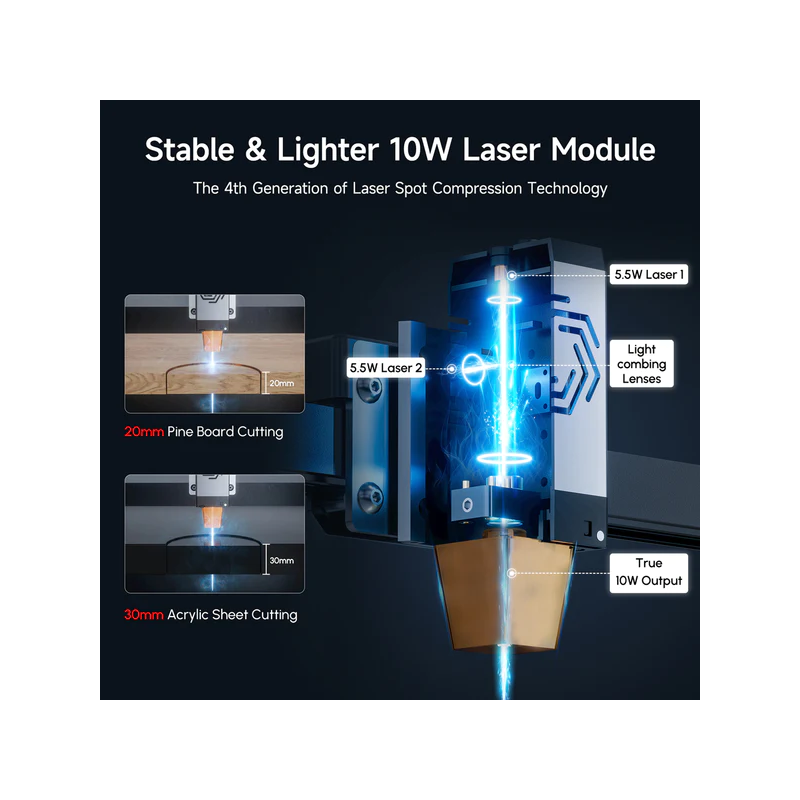

LU2-10A laser module adopts the 4th generation of laser spot compression technology and the 2nd generation of laser diodes combining technology. It has 10w high power and a compressed laser spot, so it's better at cutting and engraving more complex materials.

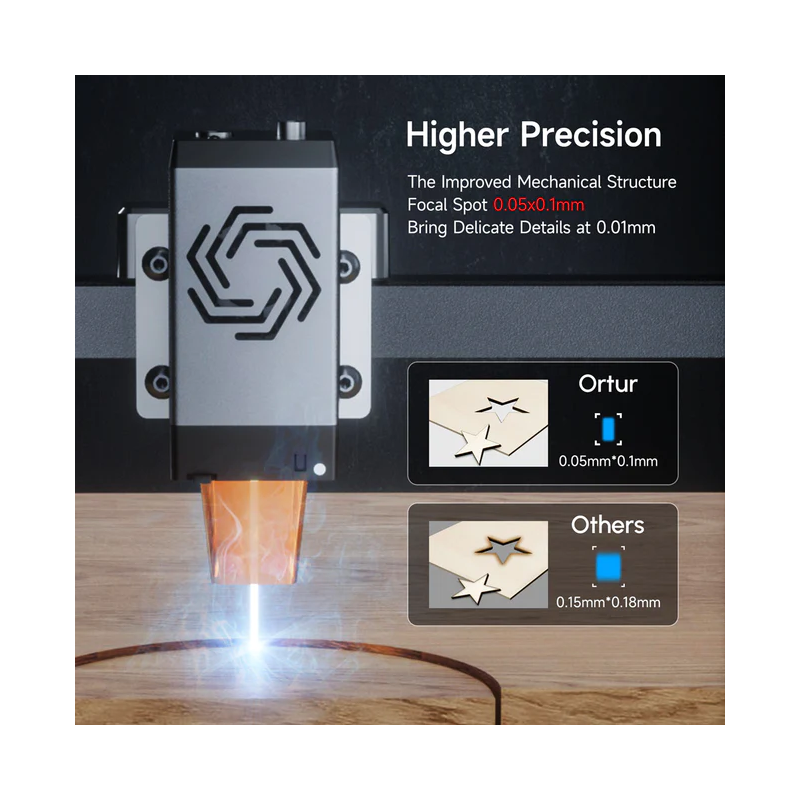

Higher Precision
It has a 0.05x0.1mm focal spot with an improved mechanical structure, bringing delicate details at 0.01mm. It can cut 12mm wood and 10mm acrylic in one pass. Also, it can cut the pine board with 20mm max thickness and acrylic sheet with 30mm max thickness.

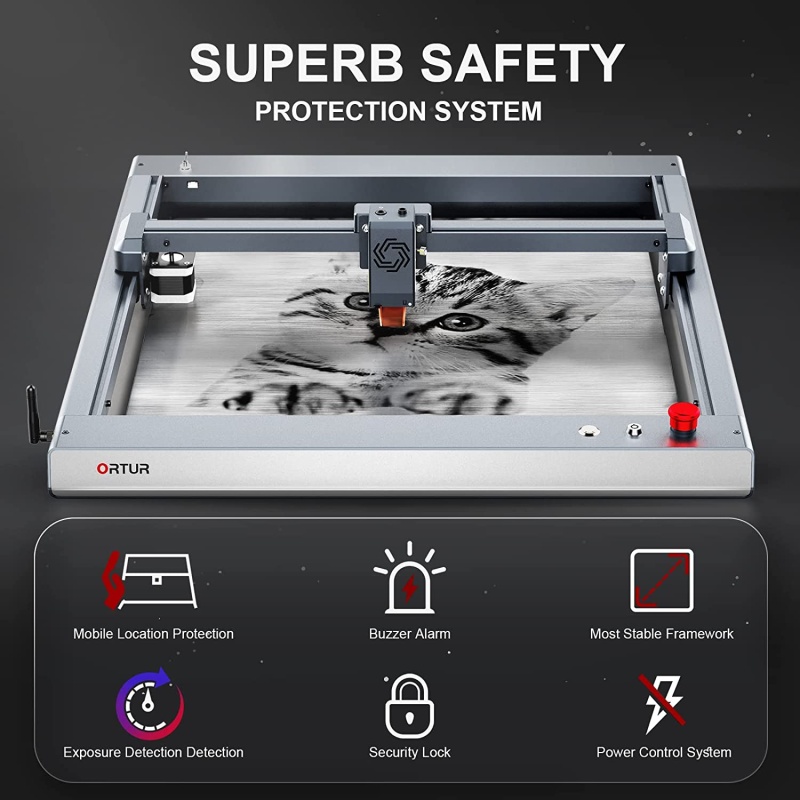

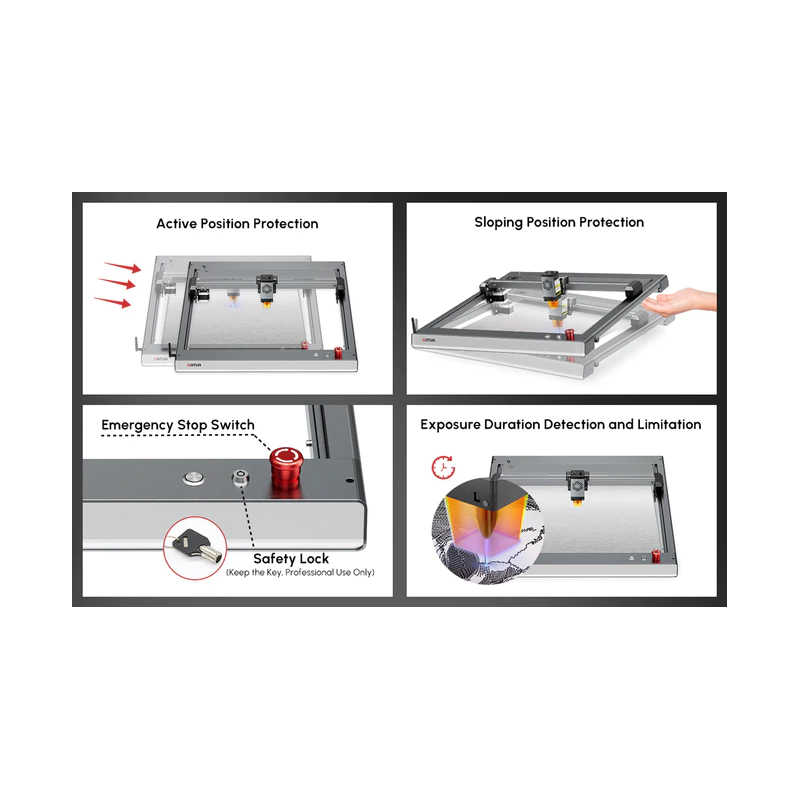

7 Safety Features
It features a safety lock (keep the key, professional use only), active position protection, sloping position protection, exposure duration detection and limitation, voltage and current safety control system, host computer watchdog, and emergency stop switch.
Wide Compatibility
ORTUR Laser Master 3 laser engraver can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, and Laser Explorer (ORTUR APP). LaserGRBL supports Win XP / Win 7 / Win 8 / Win 10, LightBurn supports Windows, Mac OS, and Linux systems (need to be paid), while Laser Explorer supports Mac OS 10.0 and Android 7.0 systems.

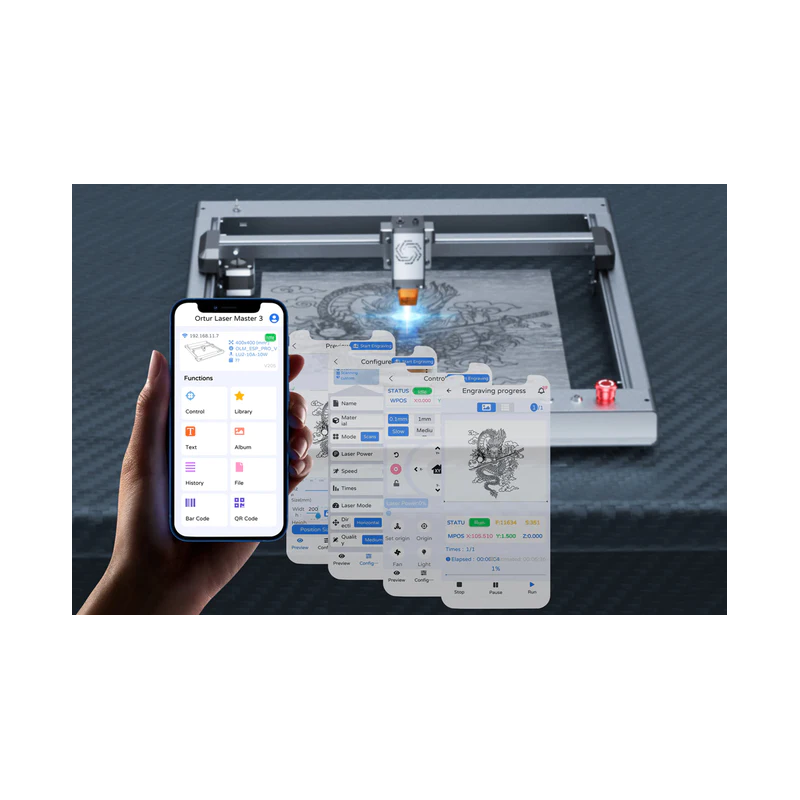

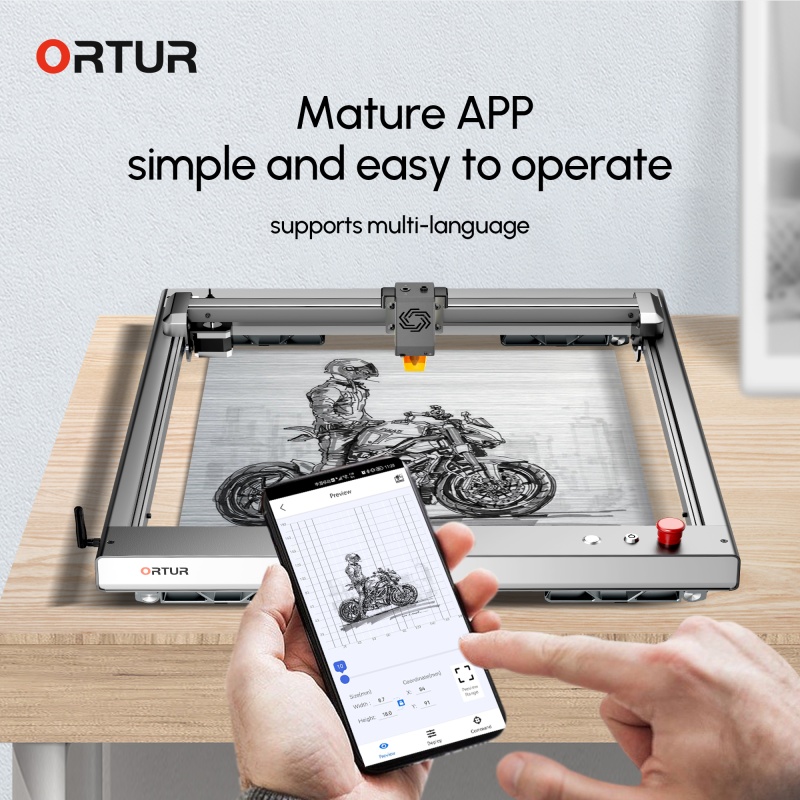

Laser Explorer has two switchable modes: easy mode and professional mode. iPhones, Android Phones, iPads, and Android Pads are supported, and it also supports printing photos from mobile phones.

Video links:

The Smartest Laser Engraver in 2022-Ortur LM3.

Tutorial links for Laser Master 3.

Accessories.



Contents

Laser Master 3

LU2-10A with free air nozzle

Purpose

Better for cutting and Engraving

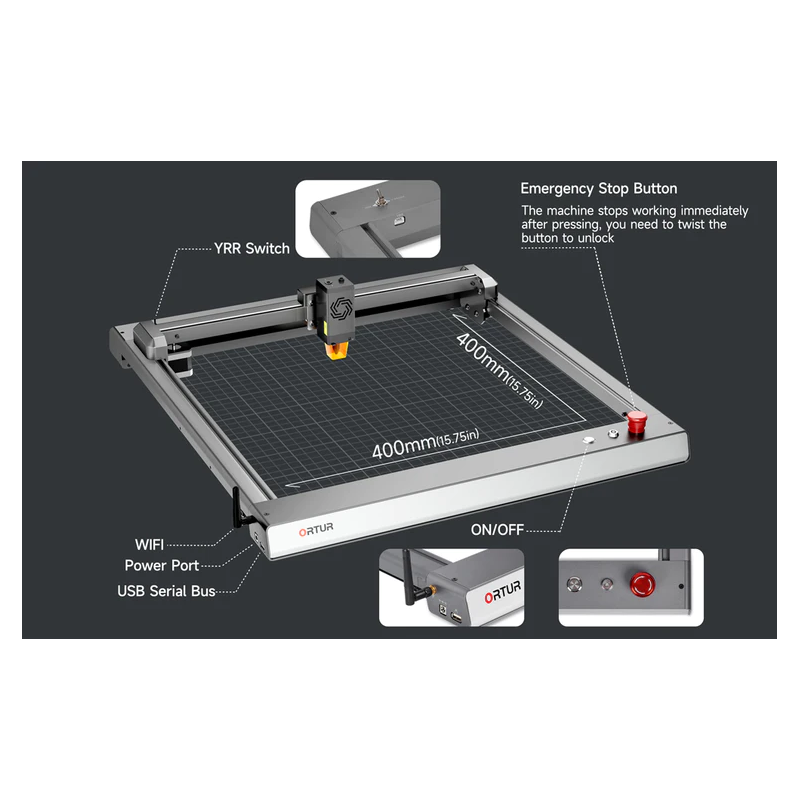

Engrave
Area

400mm×400mm

Pixel Accuracy

adjustable (Default: 500 pixels per inch, about
0.5um Pixel Accuracy)

Luminous Power

9,500-10,500Mw

Speed

0-20,000MM/Min

Baud Rate

115200 - 921600
(Default: 115200)

Power Rate

S0-S1,000

Wave Length

445±5nm

Firmware

OLF-207

Control Softwares

 Ortur APP(Laser Explorer), Web UI, LaserGRBL (free), LightBurn (Paid Software)

Support System

Mobile,Android & iOS PC: Windows & Mac OS; Web

Safety  Function

1. Safety Lock (Keep the Key, Professional Use Only)
2. Active Position Protection
3. Sloping Position Protection
4. Exposure Duration Detection and Limitation
5. Voltage and Current Safety Control System
6. Host Computer Watchdog
7. Emergency Stop Switch

Marking

LU2-2 1.6W output power with most minor laser spots, excellent engraving on wood
LU2-4-SF luminous power 5.5W, better when engraving hard materials, such as stone, stainless steel
LU2-4-LF luminous power 5.5W,  with free air assist, better when cutting thick materials with very clean cutting edge
LU2-10A TURE 10W OUTPUT POWER can cut 20mm wooden boards and 30mm acrylic sheets. Cut through 10mm pine board and black acrylics at one pass.

The Firmware can be updated at: https://ortur.tech/latest-firmware/

FAQ

Q1: Can the Ortur Laser Master 3 truly engrave at 20,000mm/min speeds?

A: Yes, it can! And this was achieved by using 4 main changes in the design:

1. First of all, the Ortur LM3 was redesigned to have its mechanical structure's centre of gravity as low as possible. Ultimately, there is a substantial reduction in the frame harmonic vibrations.

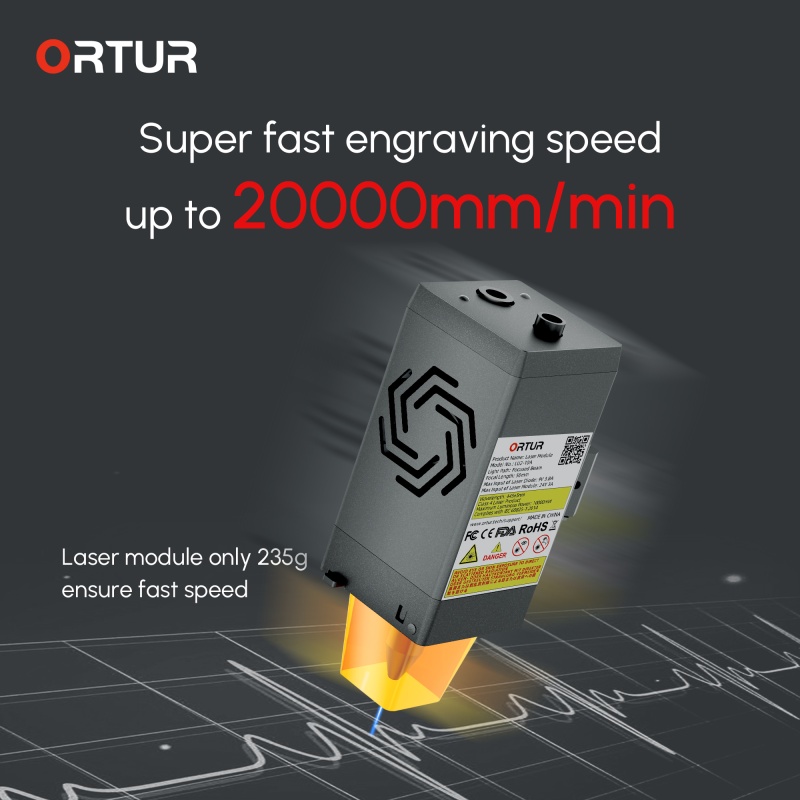

2. Secondly, the LU2-10A 10W laser module that powers the Ortur LM3 is extremely light. Only 235 grams, maintaining high power delivery and cooling performance.

3. The Ortur LM3 motherboard and Firmware employ G-code streaming optimization, allowing data transfer to break the old 6,000mm/min limitations.

4. TMC2209 stepper driver chips are used on the Ortur LM3. These high-performing drivers allow for high torque, silent operation, and no switching homing.

Q2: What does 20,000mm/min speed engraving mean?

A: Ultimately, it will save time. Combined with the 10w true optical power of the LU2-10A, the Ortur Laser Master 3 can double the work output possible with a Laser Engraver. If you're using a laser engraver on a commercial, you can serve twice as many customers in the same amount of time.

For example, it takes 30 minutes to engrave a black-and-white image of about 10CMx10CM at a 6000mm/min speed. The same image engraved at max speed with the Ortur LM3 can be finished in roughly 10 minutes.

Q3: What does precision mean in laser engraving or cutting processes?

A: In the engraving, it can ensure that the grey level of the photo is highly maintained and that the line drawing is accurately portrayed. Precise cutting at the 0.1mm level is provided during the cutting process.

Q4: What is the limit-free switch function?

A: With the latest TMC 2209 stepper driver chips, there is no longer the need for physical limit switches to have consistent and perfect homing operations. On top of that, the operation of the machine will be near silent at low speeds and very quiet at maximum speeds.

Q5: What is two-way communication?

A: The latest ESP-Pro-v2.4 motherboard is designed to have bi-directional I/O interfaces. Not only will the motherboard talk to the machine components, but these can also communicate and report back to the motherboard on their current state. Soon expansion I/O products will be released to give the machine even the power to control the environment around the Ortur LM3.

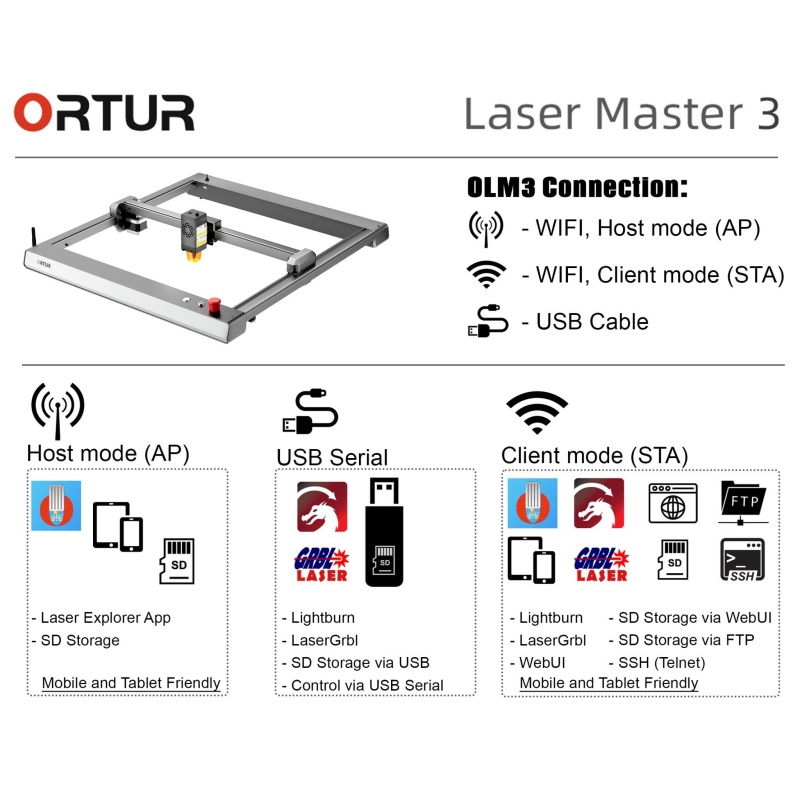

Q6: What are the 5 Ways channels link?

A: Laser engravers commonly use USB Serial port communication, which would require a permanent USB wire connection to a host computer. With the Ortur LM3, this will be available but be only one of 5 options. The machine can engrave from USB, SD card, WebUi, FTP, and App. The machine can connect to your wifi network or provide a WIFI network to connect to (Access Point mode).

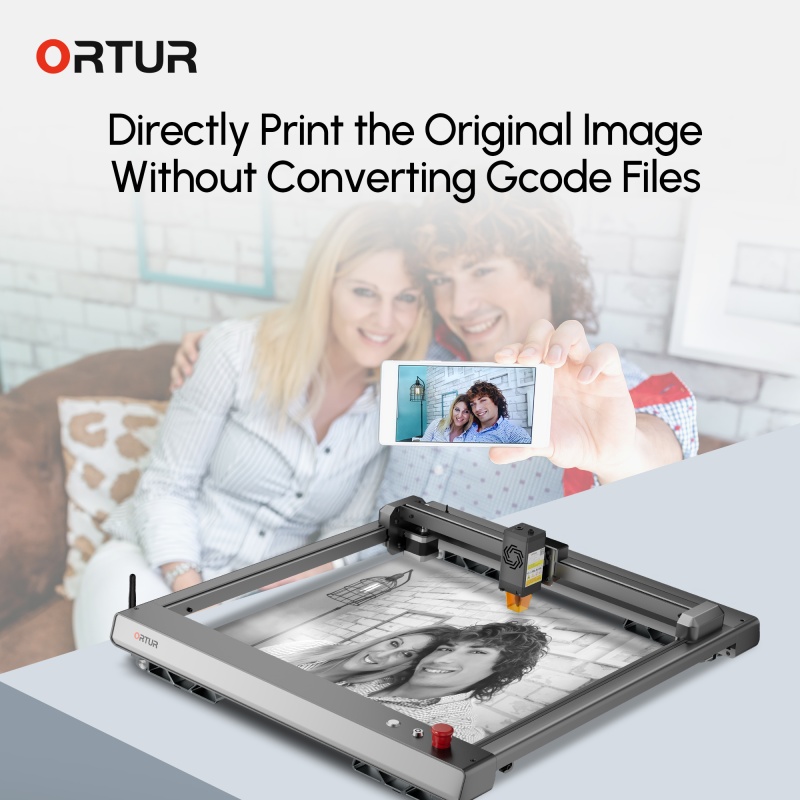

Q7: What is a direct image engraving?

A: Using AI, the Ortur LM3 Firmware can convert and optimize an image directly sent to the machine and automatically generate gcode without user intervention, cumbersome settings, or parameters.

Q8: What is WebUI?



A: Your Ortur LM3 will be a machine and a service. A web server is built into your machine firmware, and you can connect to your machine via a standard browser. On your Computer, Chromebook, Laptop, Ipad, etc. Any device that can launch a browser and is connected to your network will be a point of control.
