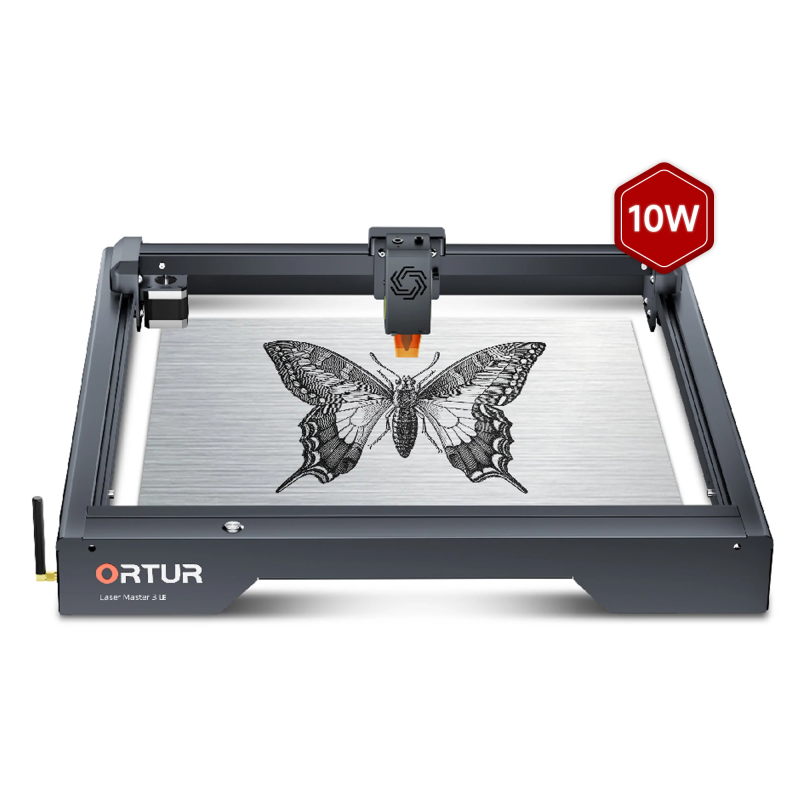

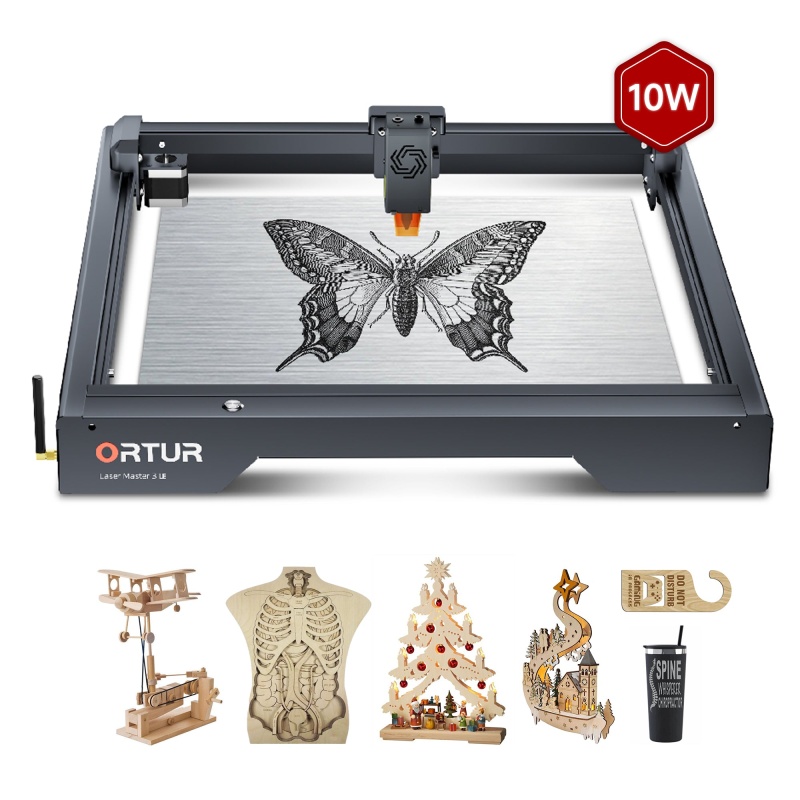

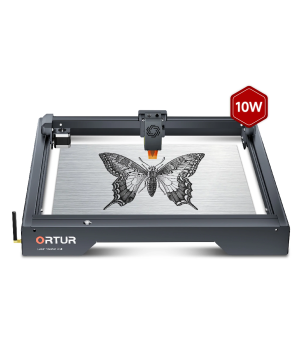

ORTUR LASER MASTER 3 LE - LASER ENGRAVING & CUTTING MACHINE - 10W

ORTUR LASER MASTER 3 LE - LASER ENGRAVING & CUTTING MACHINE - 10W

Kaubamärk:
Tootekood: 28745
Ühik: tk
Tarneaeg: 7 päeva
Hind: 768,60 €


 Graveerimiseks oleks vajalik komplekt lisada OLM3 seadmele:

  • Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
  • Platform (ORTUR LASER ENGRAVING PLATFORM)
  • Enclosure (ORTUR ENCLOSURE 2.0)
  • Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)

Lõikamiseks  oleks vajalik komplekt lisada OLM3 seadmele:

  • Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
  • Platform (ORTUR LASER ENGRAVING PLATFORM)
  • Enclosure (ORTUR ENCLOSURE 2.0)
  • Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)
  • ORTUR AIR PUMP 1.0

Kui soovide suuremat pinda lõigata/graveerida:

  •  ORTUR LASER MASTER 3 EXTENSION KIT

Muudeks töödeks head abilised:

  • ORTUR LASER MASTER 3 EXTENSION KIT
  • ORTUR Y-AXIS ROTARY CHUCK

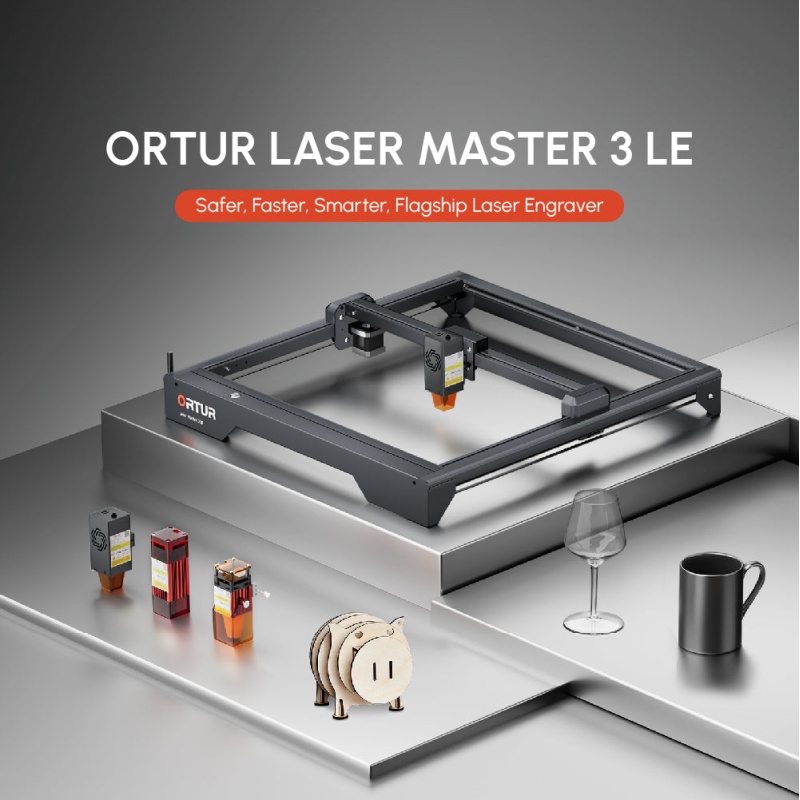

Ortur Laser Master 3 LE

This Flagship Laser Engraver is safer, faster and smarter, saving you time and improving the user experience. The high-quality silent motor reduces vibration and noise and prolongs the motor's life.

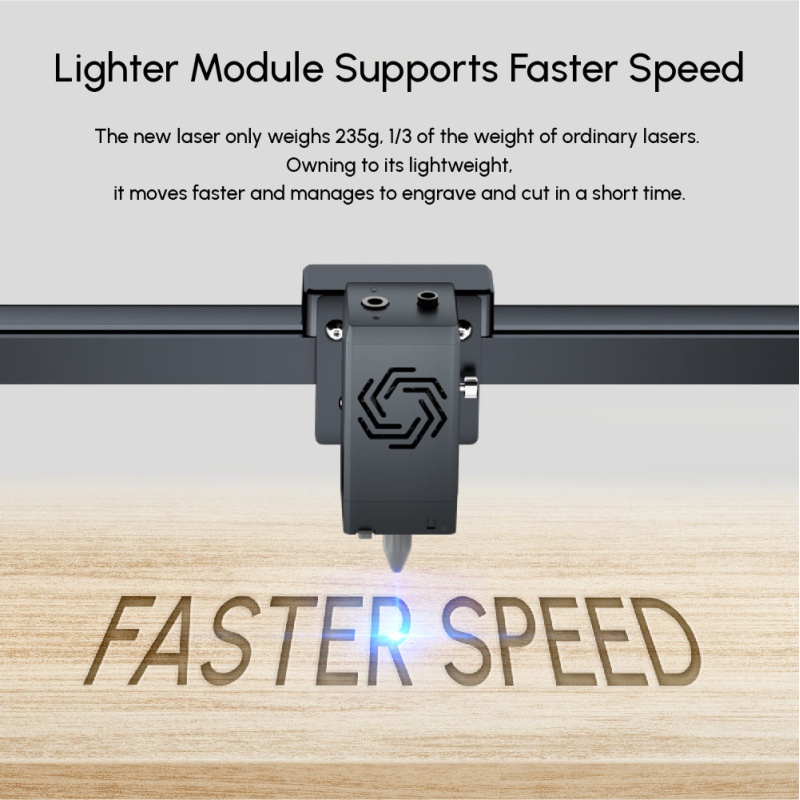

Faster Speed Thanks to Lighter Module

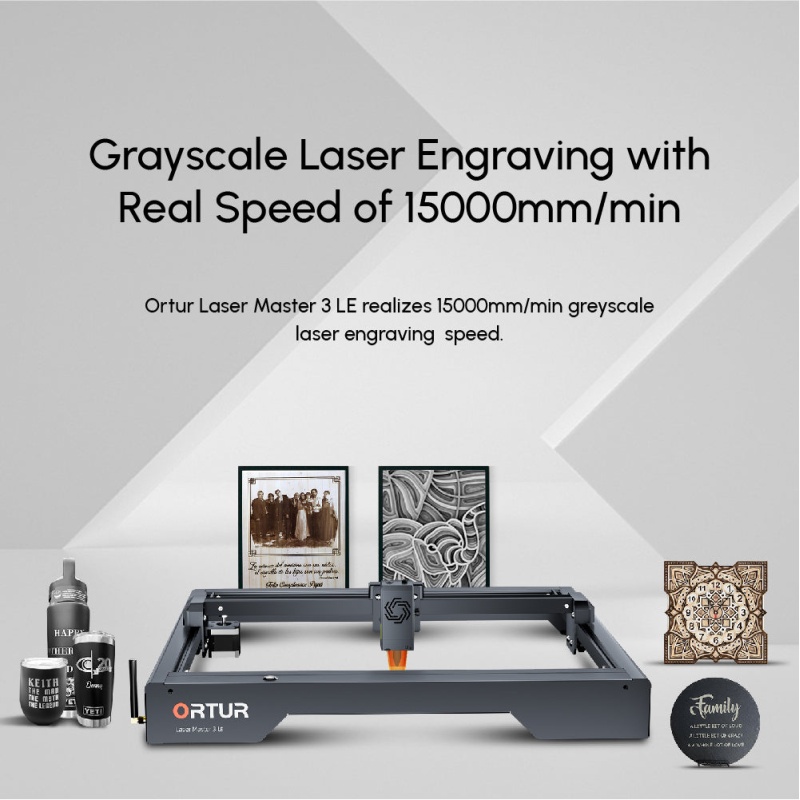

The new laser only weighs 235g, 1/3 of the weight of ordinary lasers. Owning to its lightweight, it moves faster and manages to engrave and cut in a short time. The engraving speed can be as fast as 15,000, saving you 1/3 of the time.

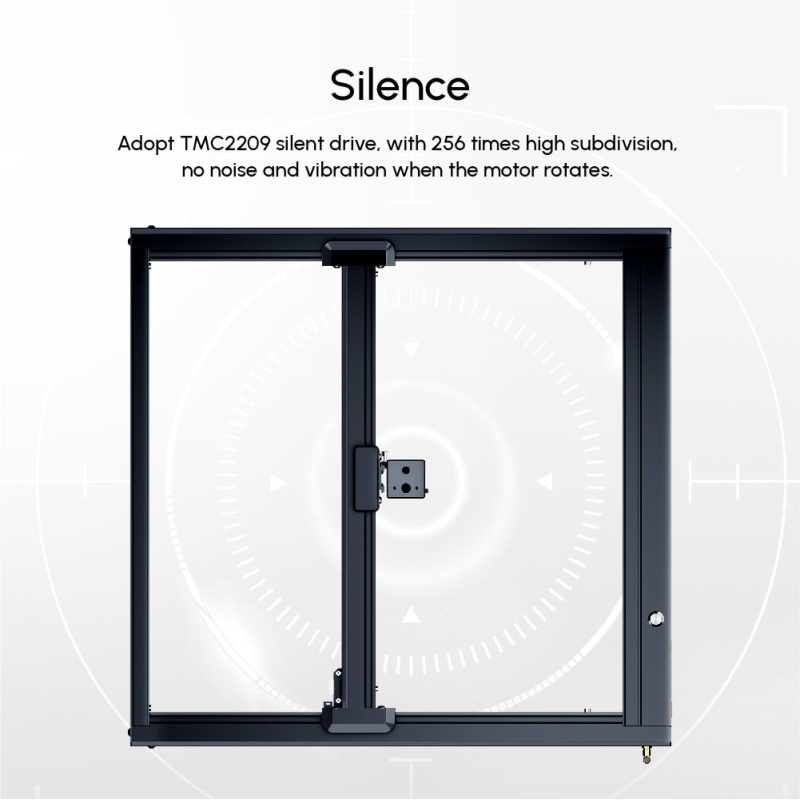

Silence

Adopt TMC2209 silent drive, with 256 times high subdivision, no noise or vibration when the motor rotates.

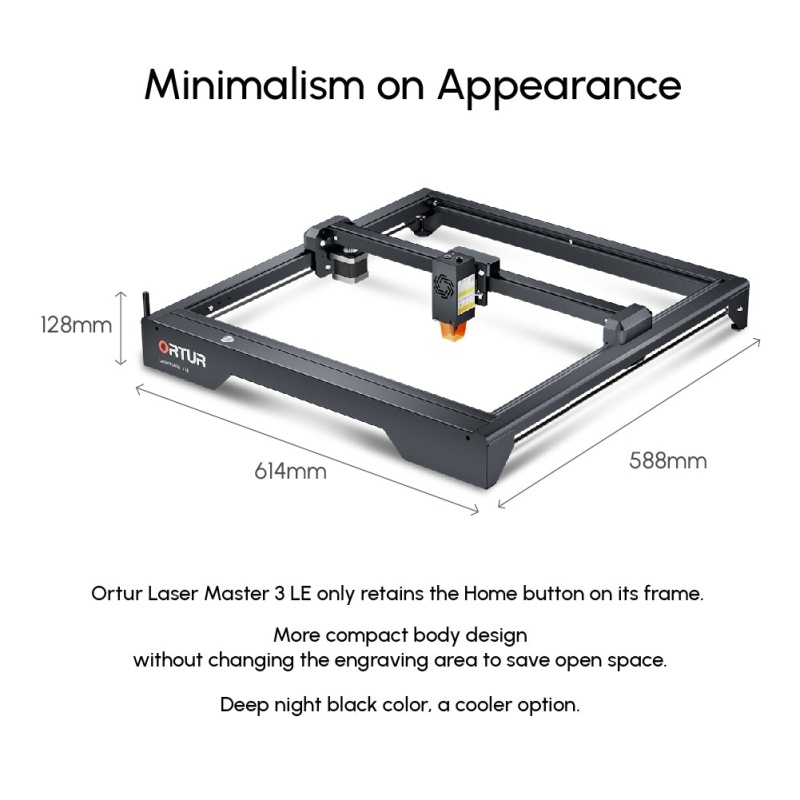

Ortur Laser Master 3 LE only retains the Home Button on its frame. More compact body design without changing the engraving area to save open space.

Compatible with Laser Explorer / LightBurn / LaserGRBL

  • LightBurn is Compatible with Windows from XP to W10 / Linux / MacOS and Supports JPG/PNG/BMP/DXF/NC, etc.
  • LaserGRBL is Compatible with Windows from XP to W10 / Linux, Supports JPG/PNG/BMP/DXF/NC, etc.
  • Laser Explorer Professional APP supports iOS/Android, cellphones, and iPad. Compatible with Windows from XP to W10 / Linux / MacOS, Supports JPG/PNG/BMP/DXF/NC, etc



5 safety functions to ensure the safety of the use environment.

Compatible with a variety of accessories to meet 99% of engraving needs.

ORTUR OLM3LE Tutorial.

Accessories.

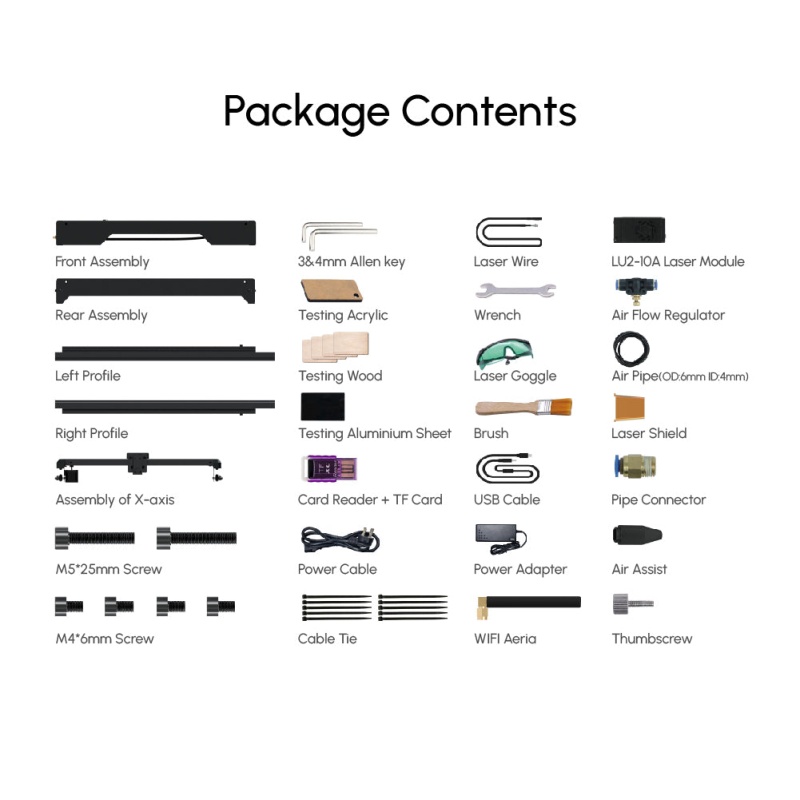

Contents

Laser Master 3 LE

LU2-10A with free air nozzle

LU2-4-SF

LU2-4-LF with free air nozzle

Purpose

Better for cutting and Engraving

Better for engraving

Cutting for 3-5mm thickness,
good for engraving as well

Engrave
Area

400mm×400mm

Pixel
Accuracy

adjustable (Default: 500 pixels per inch, about
0.5um Pixel Accuracy)

adjustable (Default: 300 pixels per inch, about
0.81um Pixel Accuracy)

Luminous Power

9,500-10,500Mw

4500-5500Mw

Speed

0-15000mm/min

Baud Rate

115200 - 921600
(Default: 115200)

Power Rate

S0-S1,000

Wave Length

445±5nm

Firmware

OLF-207

Control Softwares

Ortur APP(Laser Explorer), Web UI, LaserGRBL (free), LightBurn (Paid Software)

Support System

Mobile,Android & iOS PC: Windows & Mac OS; Web

Safety  Function

1. Active Position Protection
2. Sloping Position Protection
3. Exposure Duration Detection and Limitation
4. Voltage and Current Safety Control System
5. Host Computer Watchdog
Mark;   Without switch for Y axis and YRR
                Does not support electric lift Z axis
                 It does not support the third-generation laser module
                Without a dedicated folding foot, the general-purpose heightening foot is used instead.

Marking

LU2-2 1.6W output power with most minor laser spots, excellent engraving on wood
LU2-4-SF luminous power 5.5W, better when engraving hard materials, such as stone, stainless steel
LU2-4-LF luminous power 5.5W,  with free air assist, better when cutting thick materials with very clean cutting edge

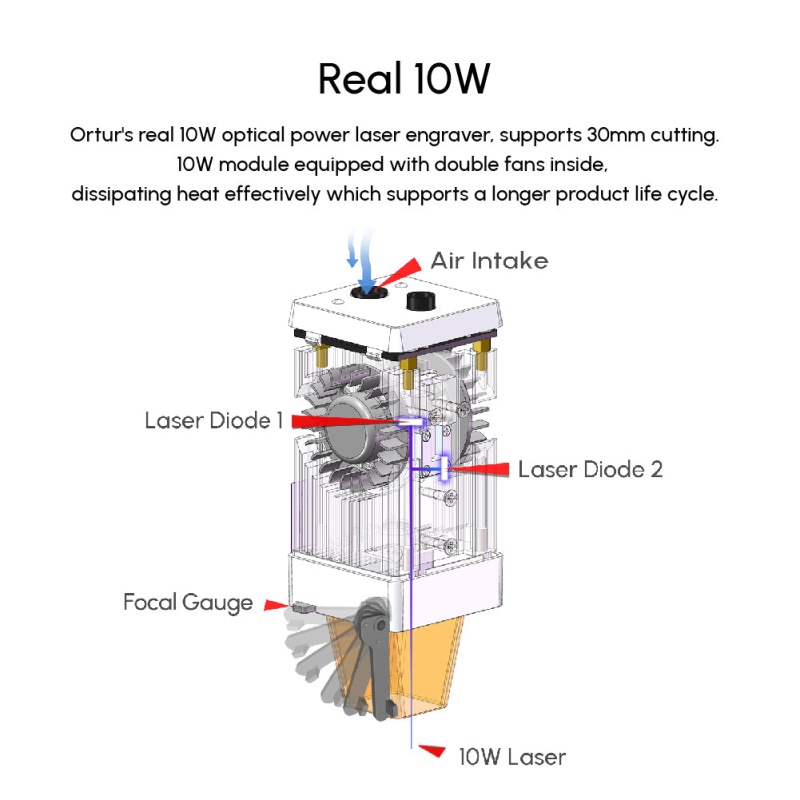

LU2-10A TURE 10W OUTPUT POWER it can cut 20mm wooden boards and 30mm acrylic sheets. Cut through 10mm pine board and black acrylics at one pass.

The Firmware can be updated in: https://ortur.tech/latest-firmware/
