RAISE3D E2
RAISE3D E2

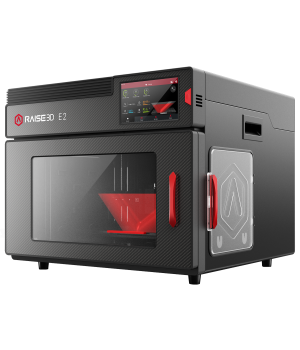

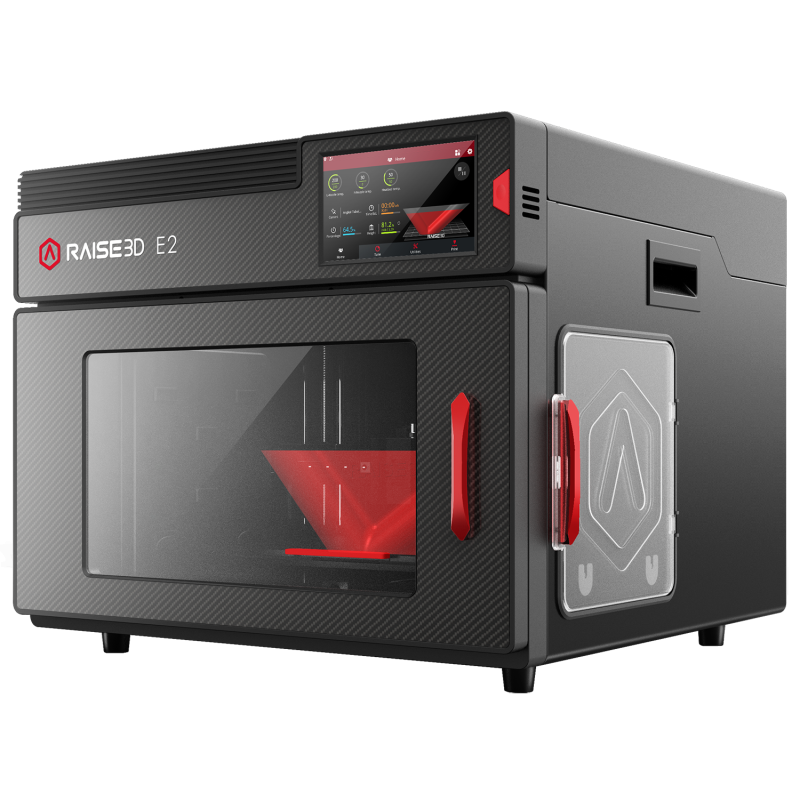

Raise3D E2 – High quality, reliable & professional 3D printer
The Raise3D E2 is a high quality, reliable & professional 3D printer for education, prototyping and additive manufacturing. For universities, schools and educational institutions Raise3D E2 offers exclusive educational discounts. Achieve impressive results with two independent extruders.
The New E2 Precise, Reliable and Affordable

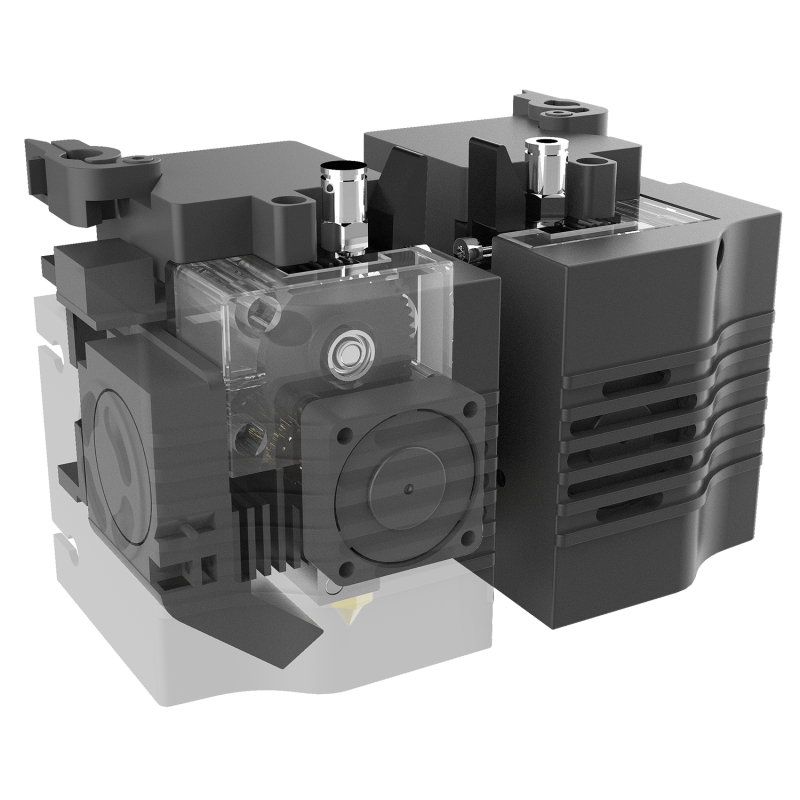

IDEX - Independent Dual Extruders

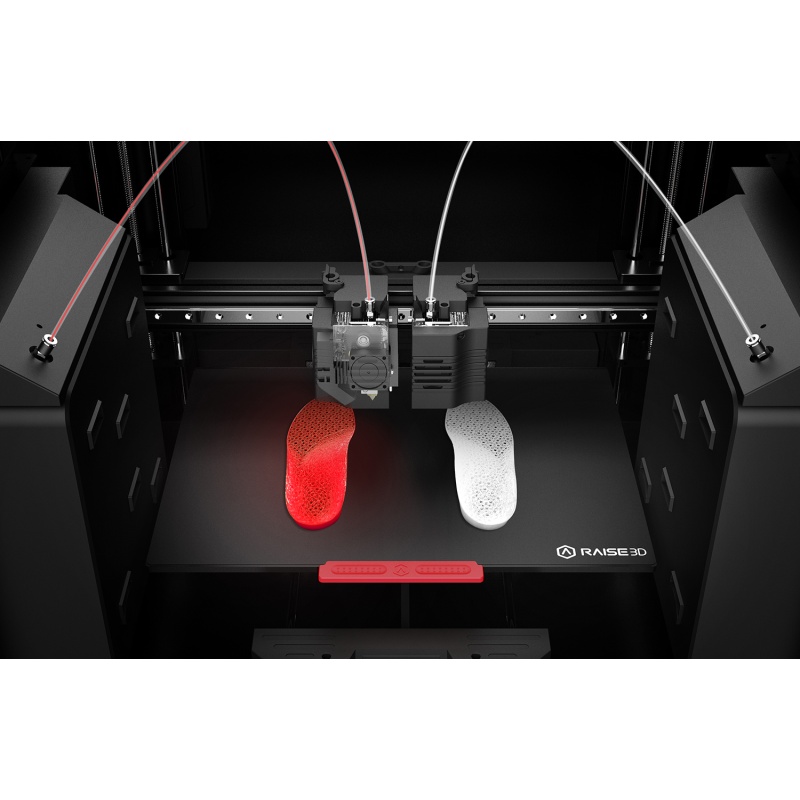

Mirror Mode
Print symmetrical 3D models simultaneously. Greatly increase productivity.
Duplication Mode
Use both extruders in synchronized printing. Doubles production capabilities.

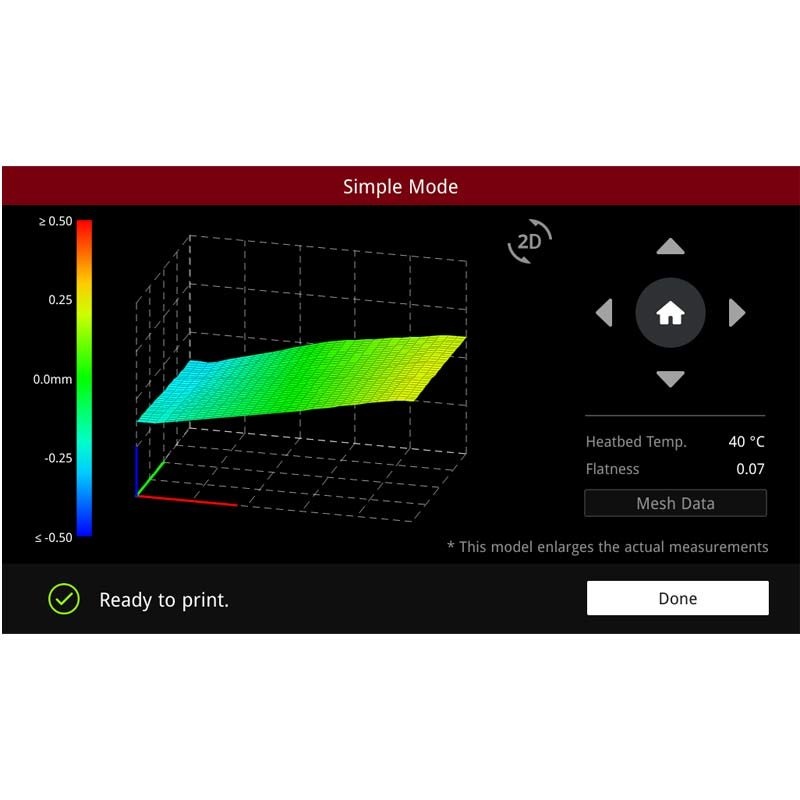

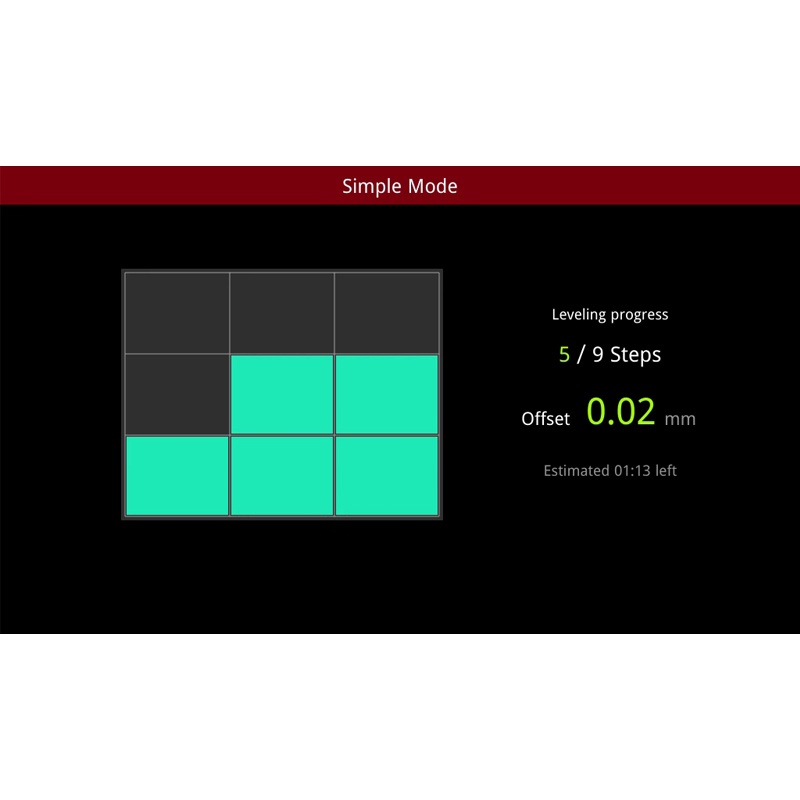

Automatic Bed Leveling
- High precision mechanical probe for automatic flatness detection
- Reduces the need for rafts
- Ensures solid foundations

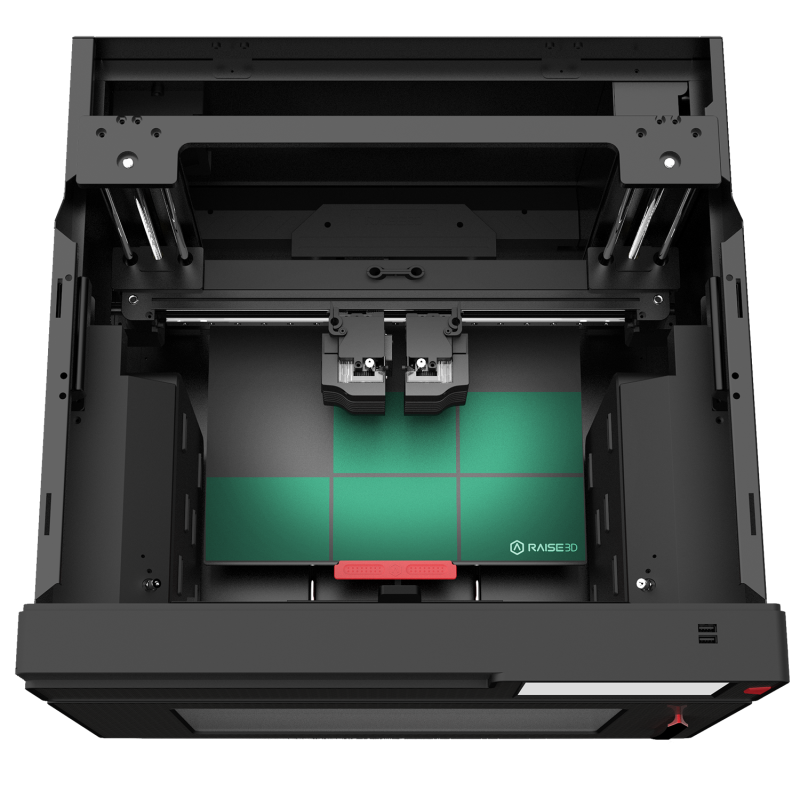

- Up to 330 x 240 240 mm
- Large build volume for bigger prints
- More options for designs
- Turns off the RaiseTouch and LED lights
- Saves energy while printing through the night
- Detects whenever a door is opened and pauses the print
- Prevents damage to printing models

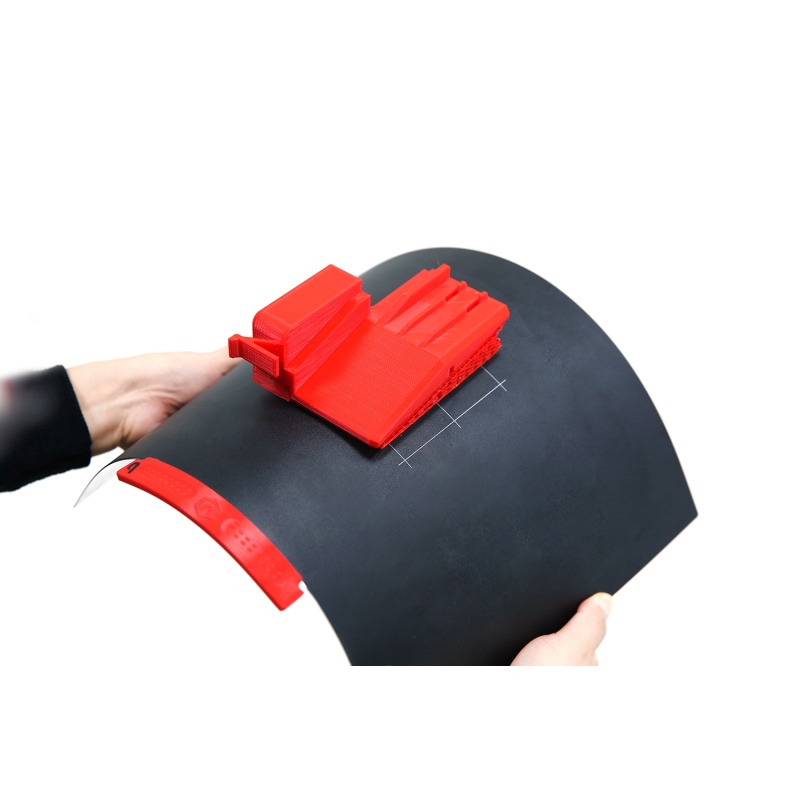

- Flexible build plate with BuildTak
- Easily remove prints
- Proven durability over 5,000 prints
- Designed to maximize advantages of IDEX technology
- Driven by Reprap firmware, and Duet electronics with Raise3D enhancements
Compatible with a Variety of Filaments up to 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Enforced / Carbon Fiber Enforces / Metal Particles Filled / Wood Filled

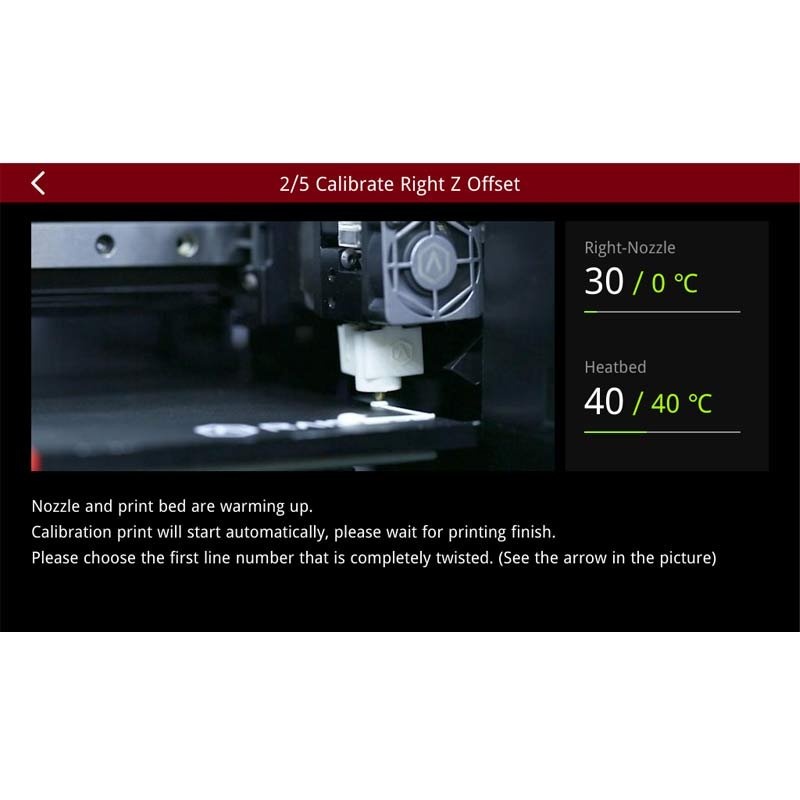

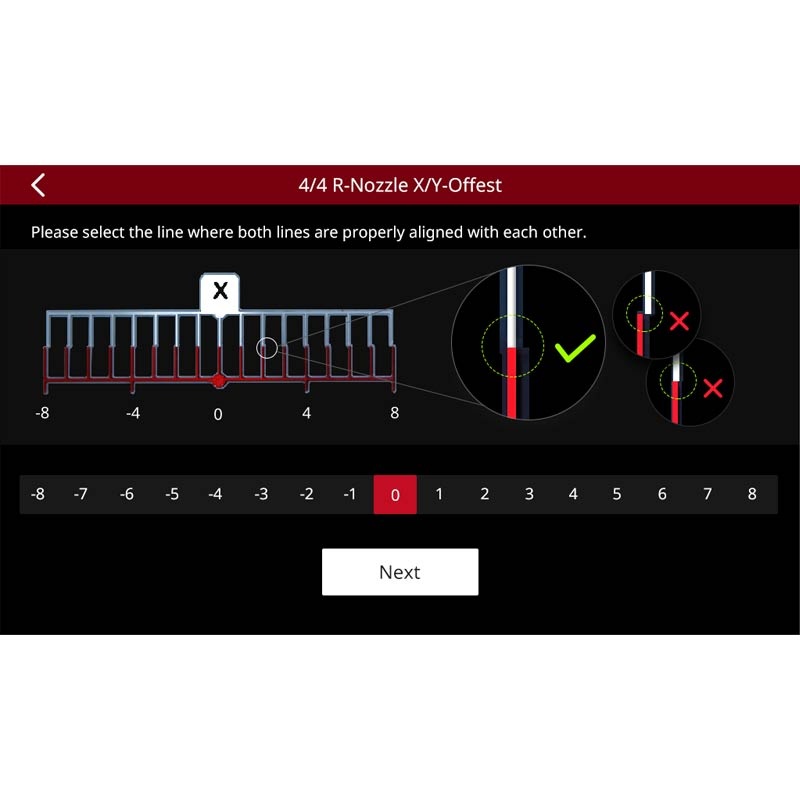

Intuitive User Experience
Visual Interface / Rapid Reviewing / Visual Print Progress / Full Adjustment Control
- 7-inch touch screen
- Integrated setting control
- On screen assistance
- Visual model selection
- Second Generation Power Loss Resuming
- New Extruder wtih Filament Run-out Sensor
“I actually knocked off the power accidentally. I was currently doing a 96 hours print with only 2 hours left. As I raised my head to scream in terror, I turned the machine back on and it asked me to continue print. THIS WAS A LIFESAVER！” - Shon Robinson
HEPA Air Filtration
- Enviromentally friendly
- Designed to silently remove nano-particles
| Technical specifications | |
| Usable Nozzle Type | Raise3D Pro2 |
| Usable Filament Diameter | 1.75 mm |
| Max Nozzle Temperature | 300 ºC |
| Open Filament System | Yes |
| Extruder Type | Direct drive |
| Recommended Printing Speed Max | 150 mm/s ( |
| Build Area | 240 mm x 330 mm x 240 mm |
| Dual Build Area | 240 mm x 295 mm x 240 mm |
| Build Plate Temp Max | 110 ºC |
| Build Plate Surface | BuildTak |
| Build Plate Material | Flexible Steel Plate |
| Build Plate Attachment | magnetic |
| Build Plate Leveling System | Mesh-leveling with Flatness Detection |
| Build Chamber During Process | Open or Closed |
| Filament Chamber Closed | Yes |
| Extruder Number Of | 2 |
| Extruder Construction Type Dual | IDEX - Independent Dual Extruders |
| Installation Space / Requirements | |
| Total Mass Overall Dimensions | 596 mm x 607 mm x 465 mm |
| Total Weight | 35 kg |
| Ambient Operating Temperature | 15°C - 30°C |
| Max Power Consumption | 350 W |
| Voltage | AC: 100 V, 2 A / 230 V (50-60 Hz) |
| Equipment | |
| Hepa Filter | Yes |
| Door Sensor | Yes |
| Filament Runout Sensor | Yes |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Camera | Yes |
| Memory Internal | Yes, 8 Gbyte |
| Connection | |
| USB Port | Yes |
| Ethernet Port | Yes |
| WLAN | Yes |
| Cloud Control | Yes |
| Accuracy | |
| Layer Height | 0.01 - 0.25 mm |
| Shipping | |
| Shipping Box | 680 mm x 700 mm x 690 mm |
| Shipping Weight | 42.701 kg |
