Product information "Shining 3D AccuFab-L4K High Precision Stereolithography 3D Printer"

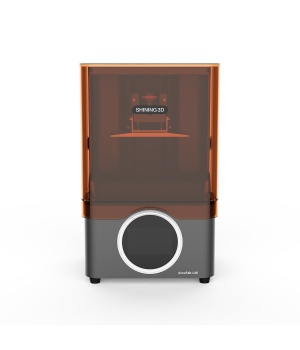

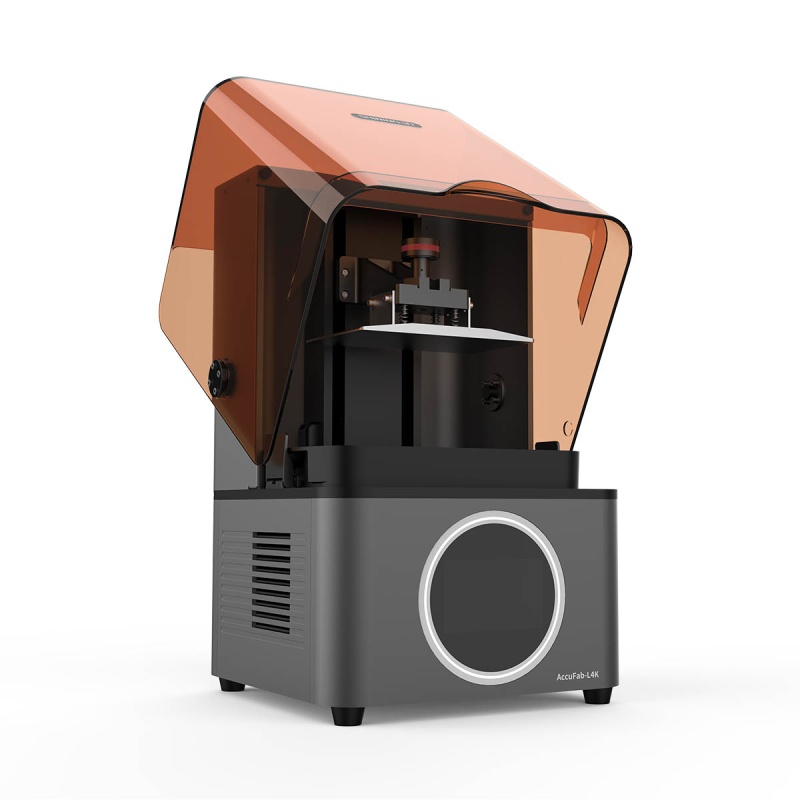

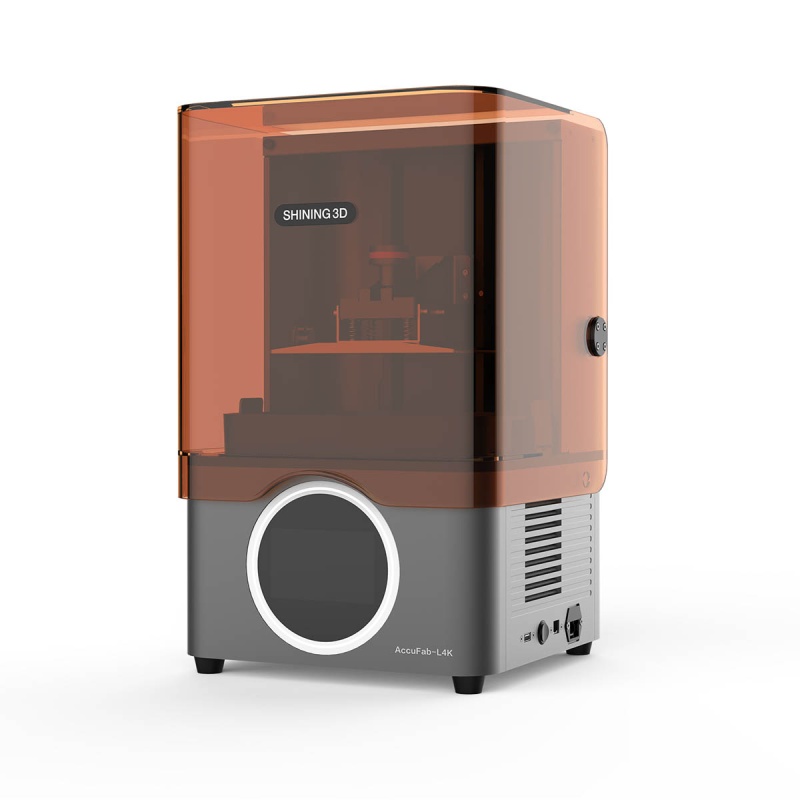

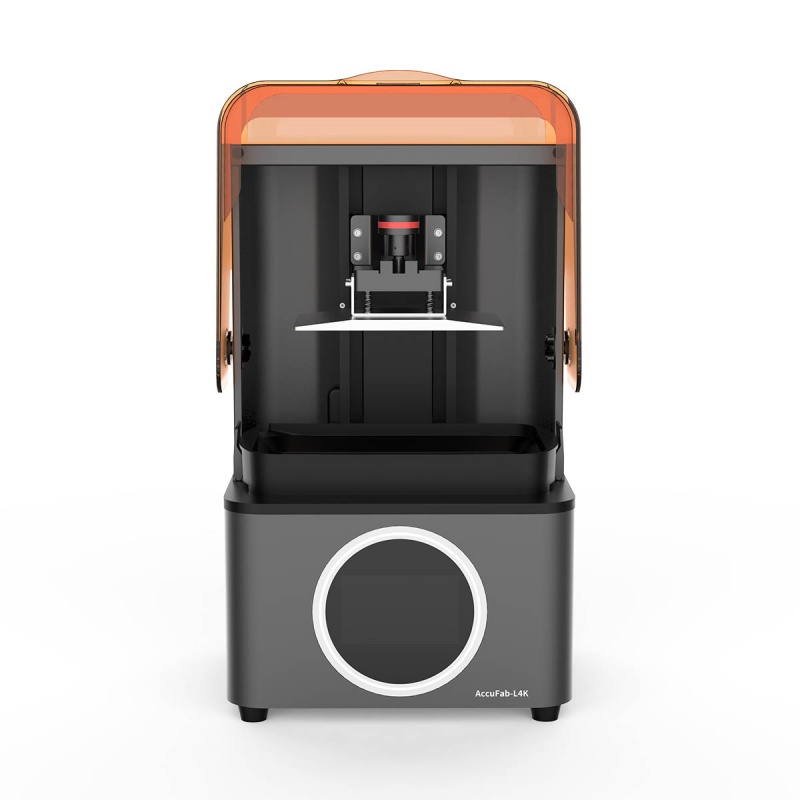

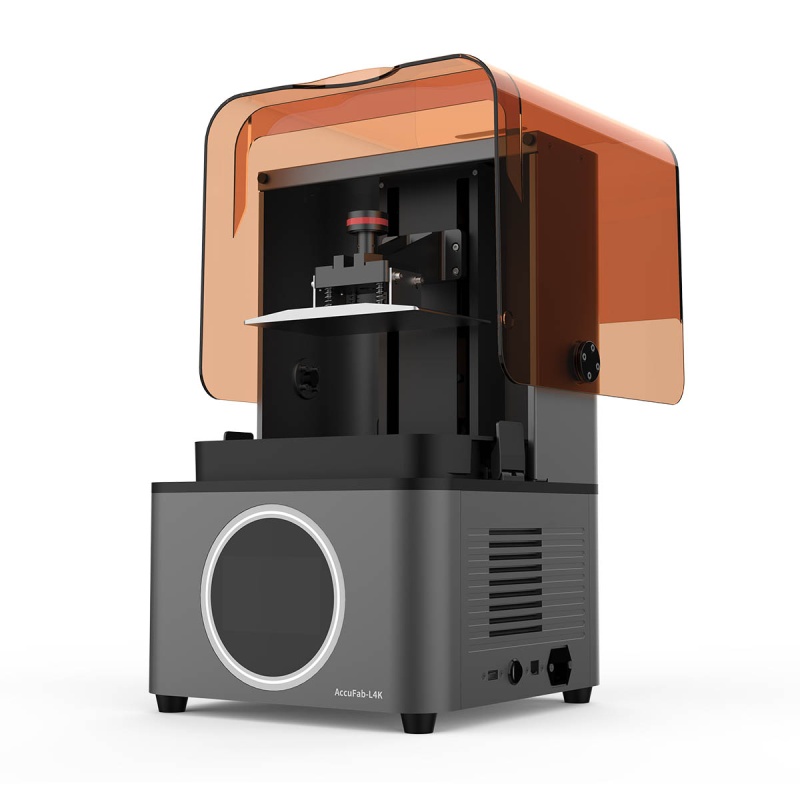

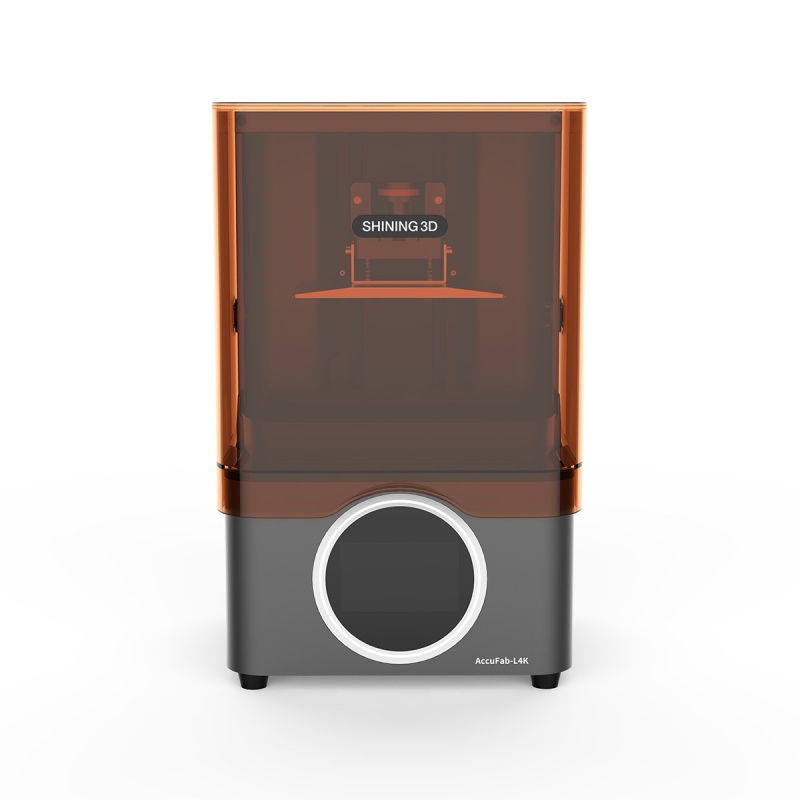

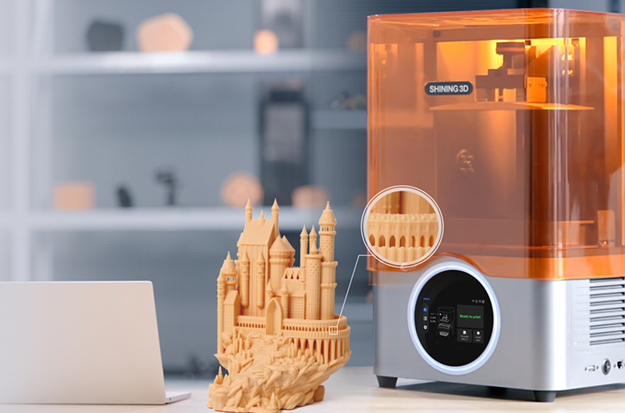

The Shining3D AccuFab-L4K 3D Printer

Extensive set including:

• 1x Shining3D Standard Yellow Resin DM12 1kg
• 2x Shining3D Resin Tank (V4) (1x installed, once in original packaging)
• various high-quality tools

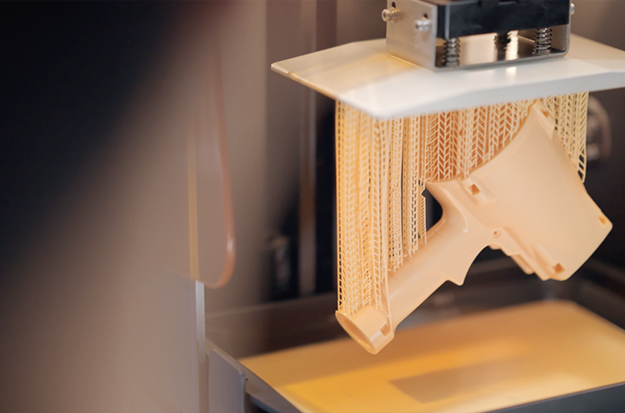

Improves prototyping efficiency and shortens the product development cycle. The build volume of 192 × 120 × 180 mm, minimum layer thickness of 0.025 mm and 4K resolution ensure reliable and detailed print results for a large build volume.

The Shining3D AccuFab-L4K 3D printer also offers high print accuracy, uniform brightness, and high resolution, as well as multiple material options and professional software. The print speed ranges from 10 to 50 mm/h. In addition, the DLP 3D printer has an integrated cooling system and plug-and-play software. The 3D printer is compatible with several resins, including those from third-party suppliers: flexible Resin, medical Resin and other SLA materials.

Shining3D AccuFab-L4K 3D Printer Video

Features

Unmatched accuracy

Accurate Precision

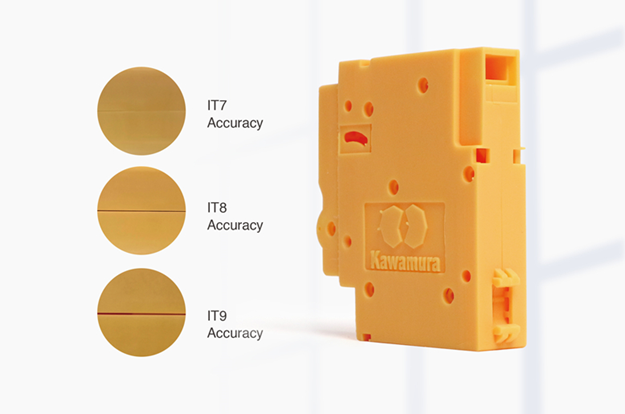

IT7 level print accuracy to ensure print size matches design size.

Outstanding uniformity
High uniformity of luminance reaches up to 90%.

Beyond the limits
It provides the ability to obtain features smaller than one pixel and excellent surface quality.

Reliable performance

State-of-the-art robustness
AccuFab-L4K's 5 million layers, tested under real-world engineering conditions, provide state-of-the-art reliability.

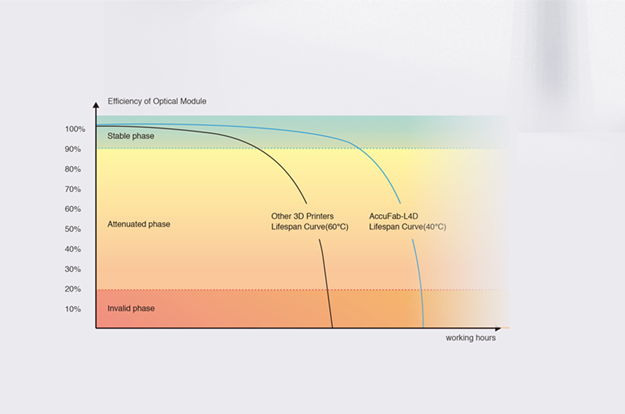

District Cooling System
DCS (District Cooling System) keeps the temperature of the optical system at 40℃ while significantly extending the life of the 3D printer.

Industrial-grade components and quality controls
Assembly production uses industrial-grade components that have passed 21 rigorous factory inspections to ensure high-quality factory equipment.

4K resolution

4K resolution meets user demands for efficiency and detail

Large format printing

Large format, rapid prototyping, highly efficient printing.

Multiple material options

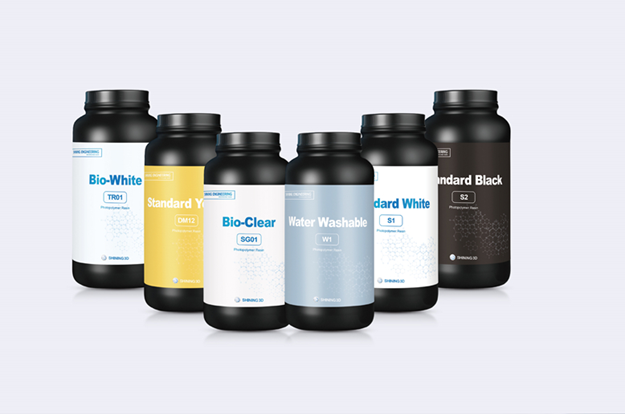

Shining Engineering Resin
Shining Engineering covers various materials for technical 3D printing applications, including standard Resin, biocompatible Resin and water-washable Resin, offering high dimensional accuracy, surface quality and low deformation rate.

Third-party certified material
Shining 3D partners with industry-leading brands of engineered materials to provide more options and flexibility.

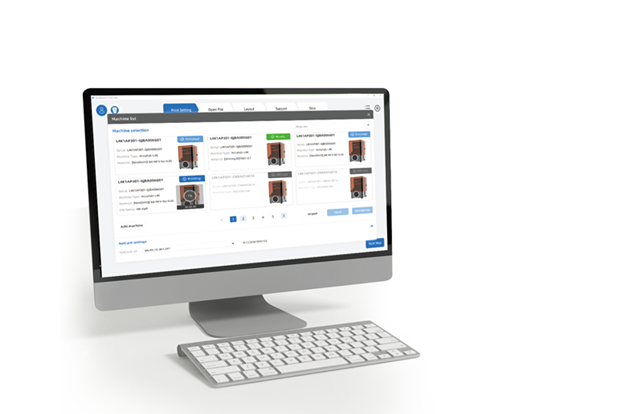

Professional Software

Plug and Play
Guided interactive operation provides a smooth learning curve and low learning costs.

Free updates
Push updates of software and material packages.

Collaborative management
Collaborative management of multiple units for fast production in small batches.

Applications

Standard Resin
Standard Resin is a stable and high-performance standardised resin. It features high dimensional accuracy and good surface quality, which is excellent for showing details in prints. It meets most requirements in prototyping, engineering and small-batch production.

Water washable Resin
It is an environmentally friendly, low-odour resin easily cleaned with water. The use of alcohol or IPA is not dangerous. The water-washable Resin has high surface quality, strong mechanical properties and stability.

Hard resins
They are specifically formulated to provide class-leading tensile strength and stiffness, high print accuracy with low shrinkage, and long-term UV stability of printed parts. These prints have low water absorption and are easy to polish.

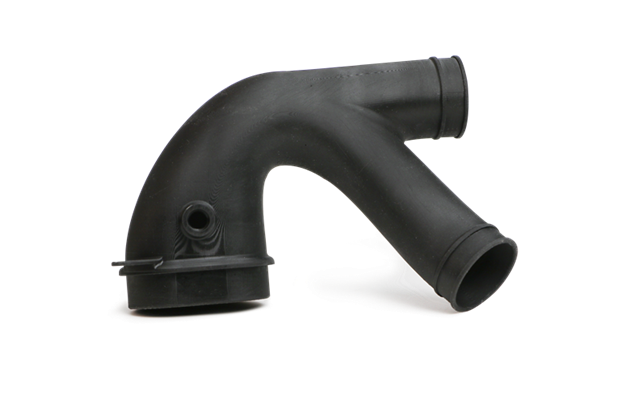

Durable Resin
Durable Resin can withstand some pressure without damaging the structure. It is suitable for technical prototypes that temporarily withstand pressure or tension. This is the right choice for demanding resin applications where a limited amount of shock absorption, compression, low bending stress, and elasticity are required to avoid brittle fracture.

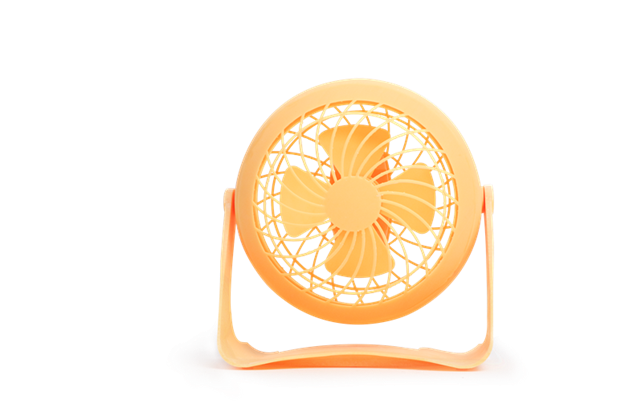

Flexible Resin
Flexible Resin with pleasing softness and good elastic properties can simulate the deformation scenarios of various products during actual use. It offers high elongation at break and combines high damping with long-term rebound and torsional strength, as its structure deteriorates minimally over time.

Medical grade resin

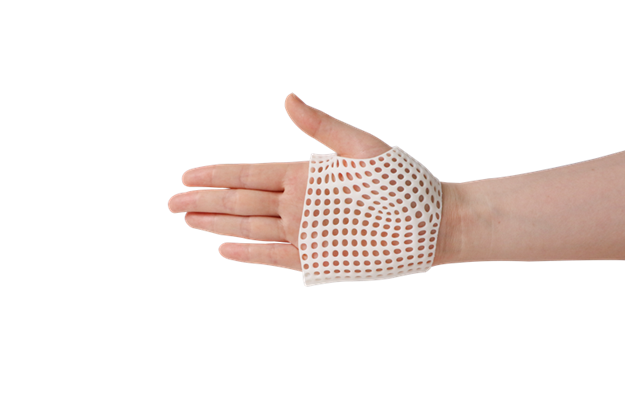

Self-developed Resin with certification proof for medical devices, suitable for printing medical products and entry-level medical aids, e.g. wrist guards orthodontic models.

Specification

Resolution: 3840×2400

Pixel size: 0.05 mm

Wavelength: 405 nm

Light intensity: 3 mw/cm^2

Light source: UV LED + LCD

Print size: 192 mm×120 mm×180 mm

Print speed: 10～ 50 mm/h

Tolerance: ±0.05 mm

Layer thicknesses: 0.025 / 0.05 / 0.075 / 0.1 mm

Working temperature: 20℃ ～ 30℃

Working humidity: 30%～ 70%

Interface: 5" touch screen

Connection Wi-Fi/Internet/Thumb drive

Weight: 19 kg

Printer dimensions: 360 mm×360 mm×530 mm

SHINING 3D technology material: White material：TR01、S1；Yellow material：DM12； Transparent material：SG01；Black material：S2； Washable material：W1

BASF material: Durable material：ST45、ST80；Rigid material：RG35、RG50； Flexible material：FL60、EL150

Certified third-party Resin: SHINING 3D approved third-party resin materials that can be used in the AccuFab-L4K high-precision stereolithography 3D printer.
