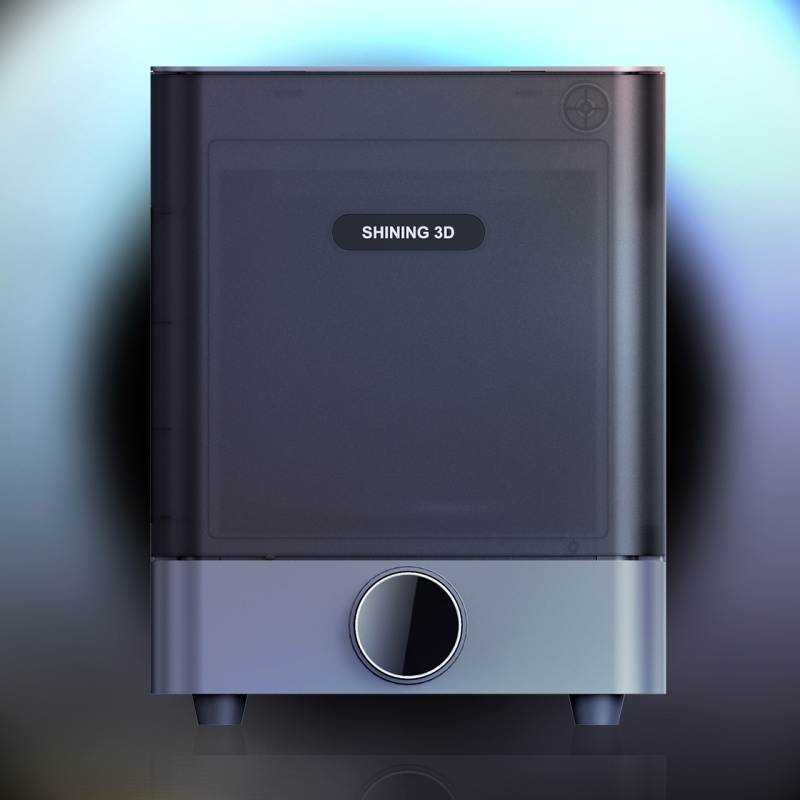

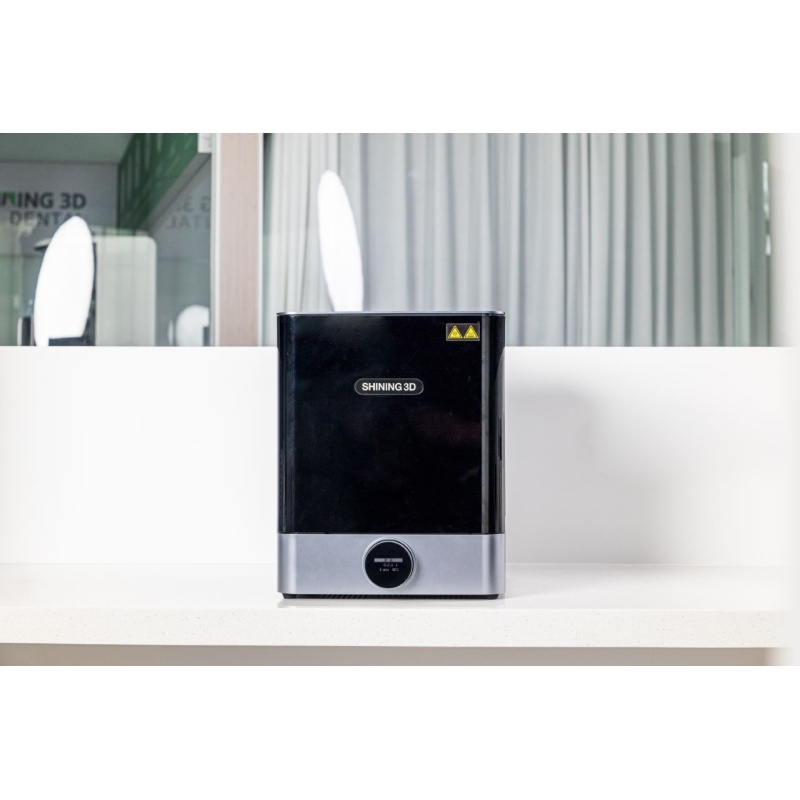

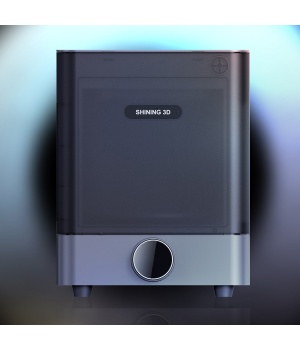

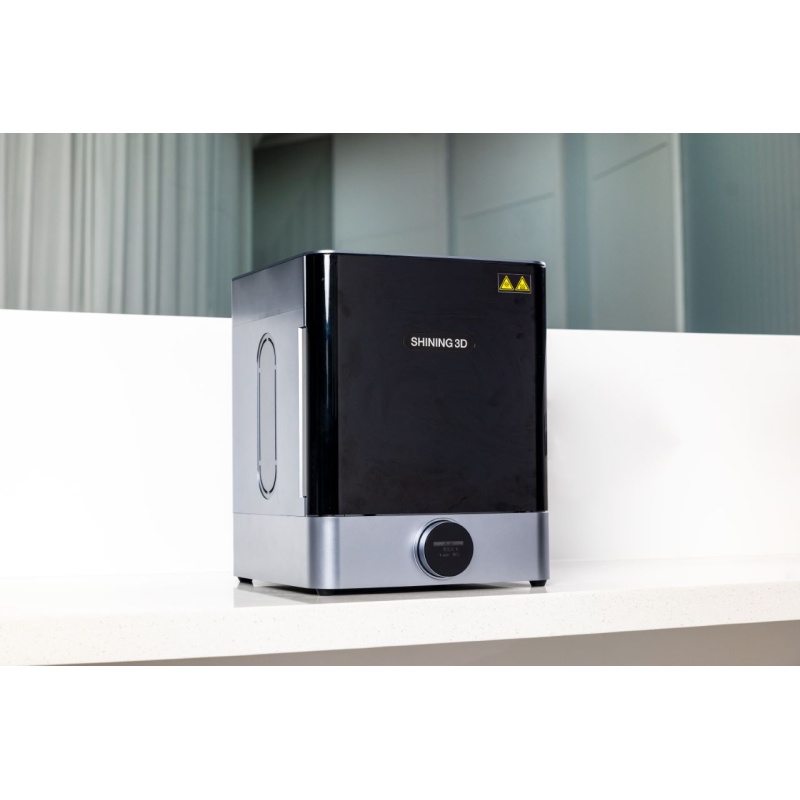

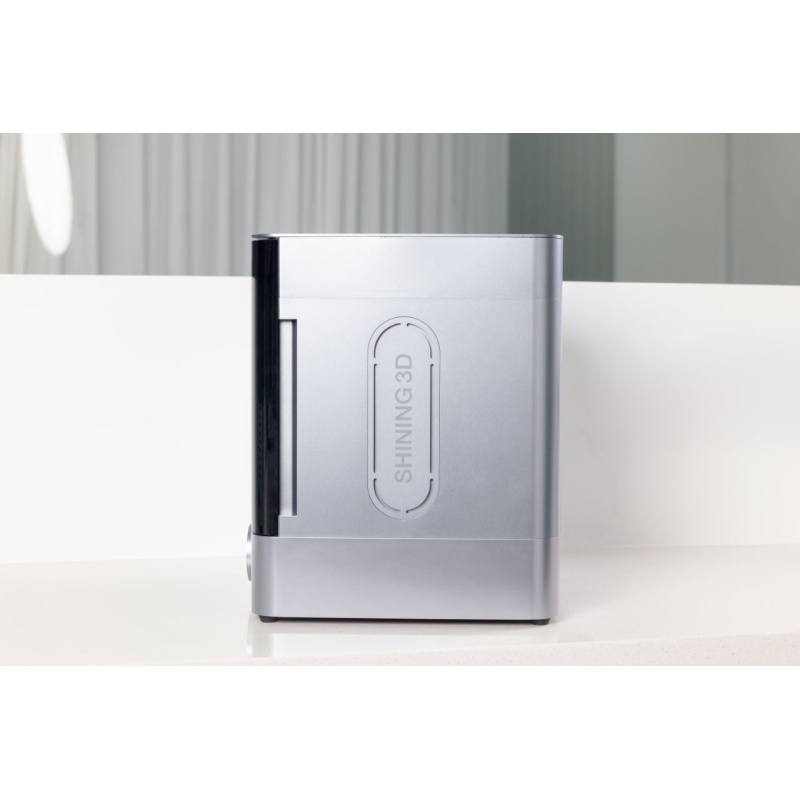

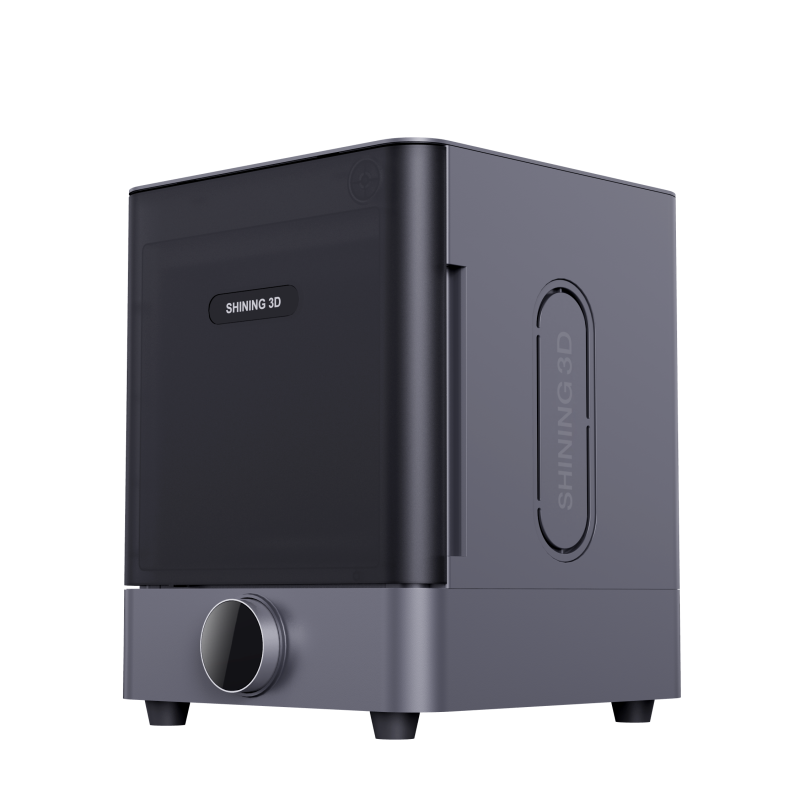

Shining 3D FabCure 2 Post-curing Unit
Shining 3D FabCure 2 Post-curing Unit
Tootekood: C5107
Ühik: tk
Tarneaeg: 9 päeva
Product information "Shining 3D FabCure 2 Post-curing Unit"
FabCure 2 Post-curing Unit
FabCure 2 is recommended as the standard post-curing tool for 3D printers from Shining3D. With FabCure 2, each resin cure profile is finely tuned to bring the part to its peak performance through precise heat and light. FabCure 2 defines the printed object's post-processing steps to ensure high precision and optimal material performance while automating the process.
FabCure 2 Post-curing Unit Video
High Power

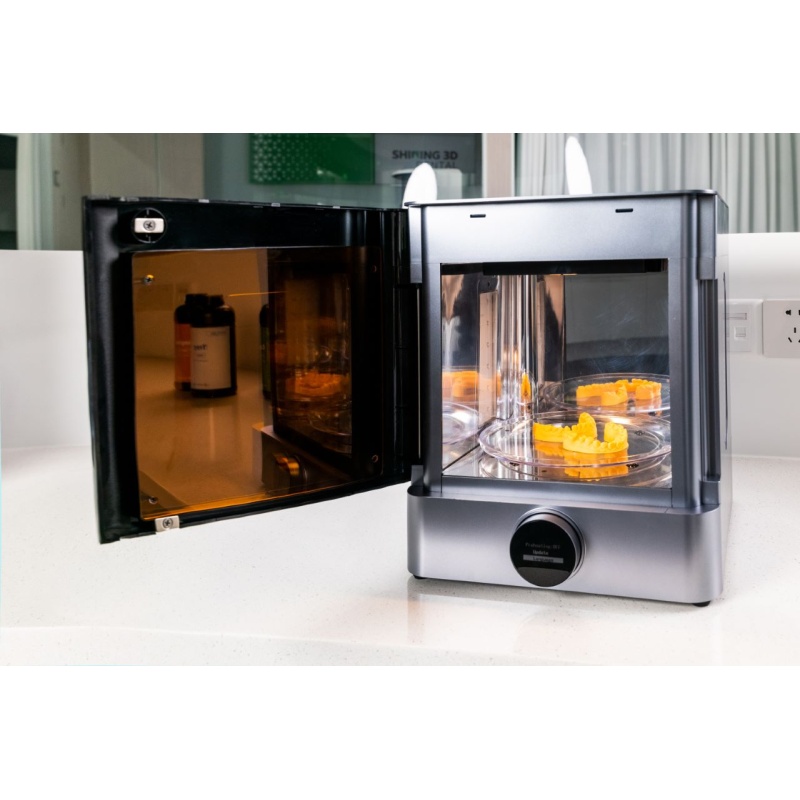

Multi-surface Light Curing
From the sides and bottom, 30 multi-directional LEDs emit powerful UV light that instantly penetrates deep into the part's surface, ultimately curing the printed object within a few minutes. With a power of 70W, these LEDs provide a high-power curing cycle, ensuring an efficient curing process.
- 30 multi-directional LEDs
- 60℃ precisely controls ambient temperatures
Rapid Chamber Heating
The ceramic heating module is integrated with multiple temperature sensors. The chamber heats up quickly to 60 degrees, contributing to the enhancement of mechanical and flexural properties. The FabCure 2 heating system precisely controls ambient temperatures to 60 ℃.
Customized Curing Parameter
FabCure 2 provides optimal curing parameters for Shining3D resins, which can be updated via the wireless network. Customized curing parameter settings are supported.
Larger Curing Volume

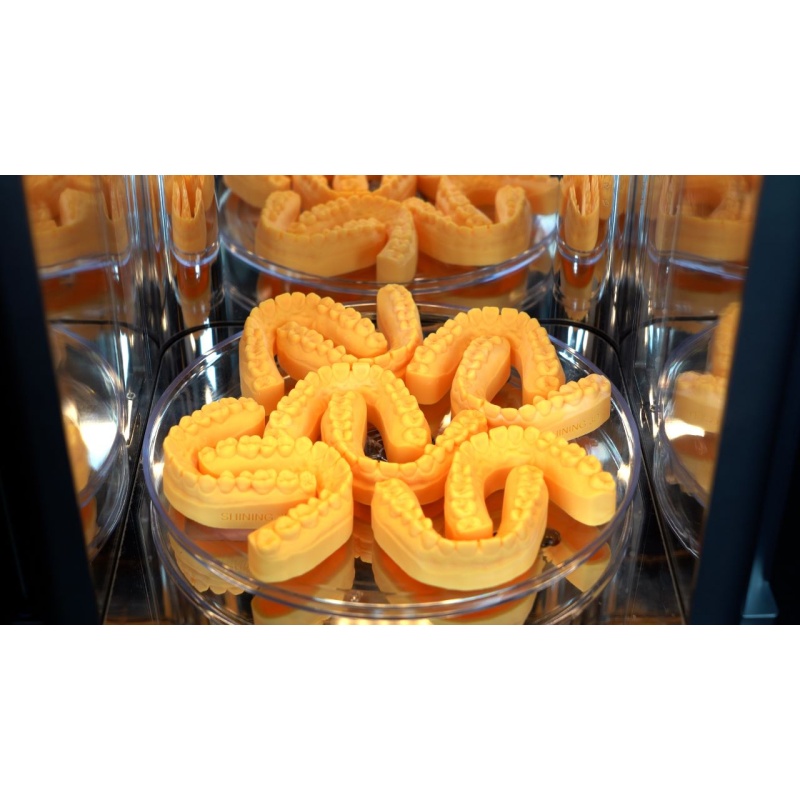

Curing volume up to Φ210mm and H180mm supports a wide range of dental appliances.
Smart Material Library
With the most up-to-date cloud-based smart material library, the FabCure 2 is always synchronized. The FabCure 2 is equipped with Wi-Fi, enabling over-the-air updates to deploy the latest firmware and configurations. Your device learns from our process engineering experts all the time.

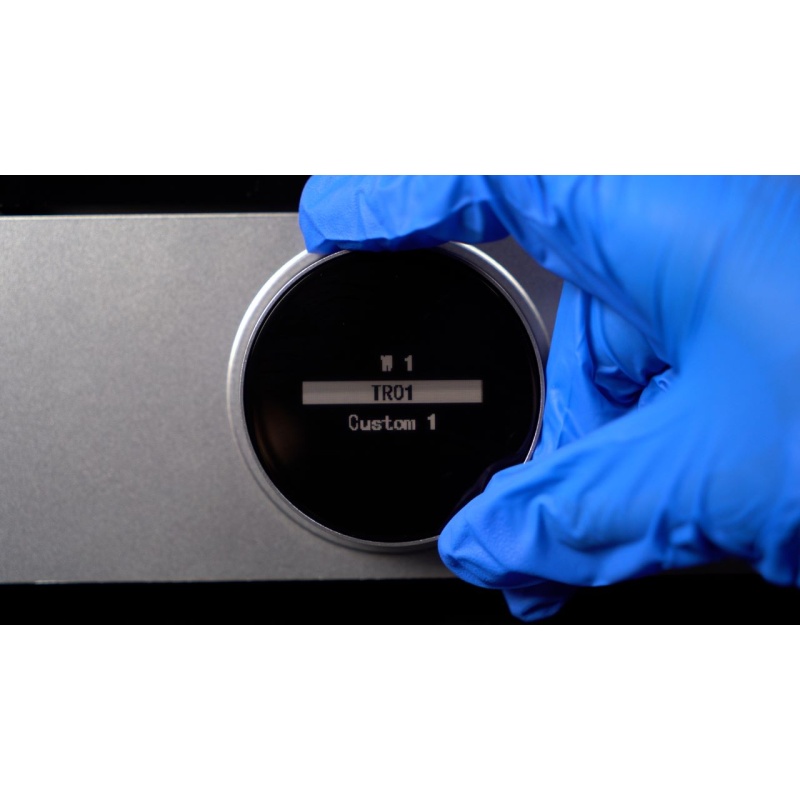

Easy Operation with OLED Screen
The popular, convenient control knob is integrated into an OLED screen, enabling an interactive and convenient operation experience.
TECHNICAL SPECIFICATION FabCure 2
Dimension (W x D x H): 290mm×290mm×367.5mm
Weight: 10.5kg
Curing volume: Φ210mm H180mm
Operating temperature: 10~30℃
Max. Curing temperature: 60℃
Light source: UV LED
Wavelength: 385nm ~ 405nm
LED power: 70W
Power: AC 100-240V, 150W
Interface: WI-FI
