Product information "SHINING 3D FabWash post-processing unit"

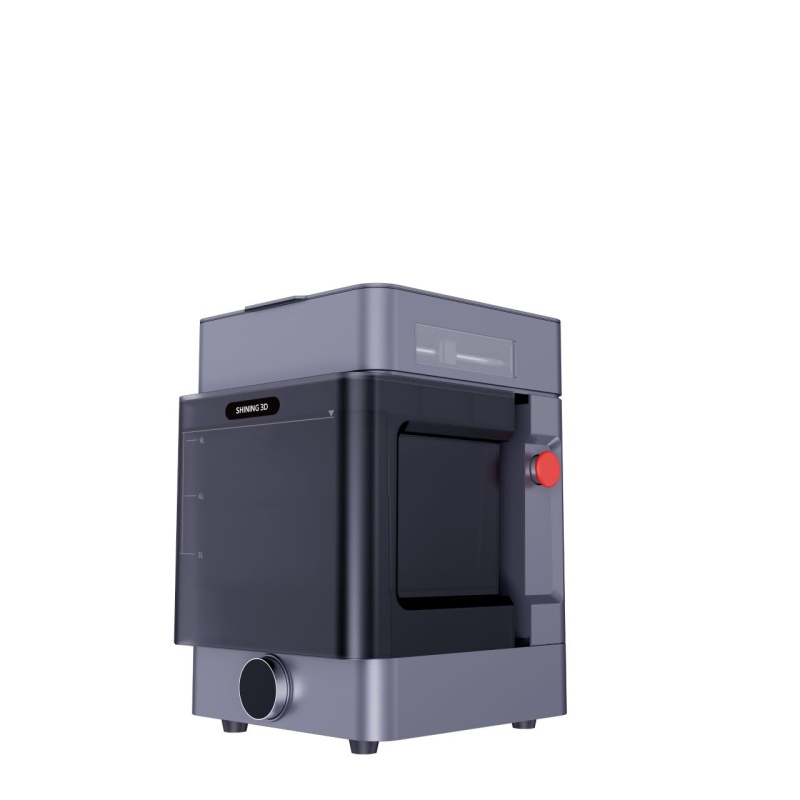

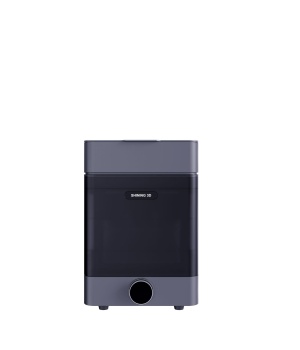

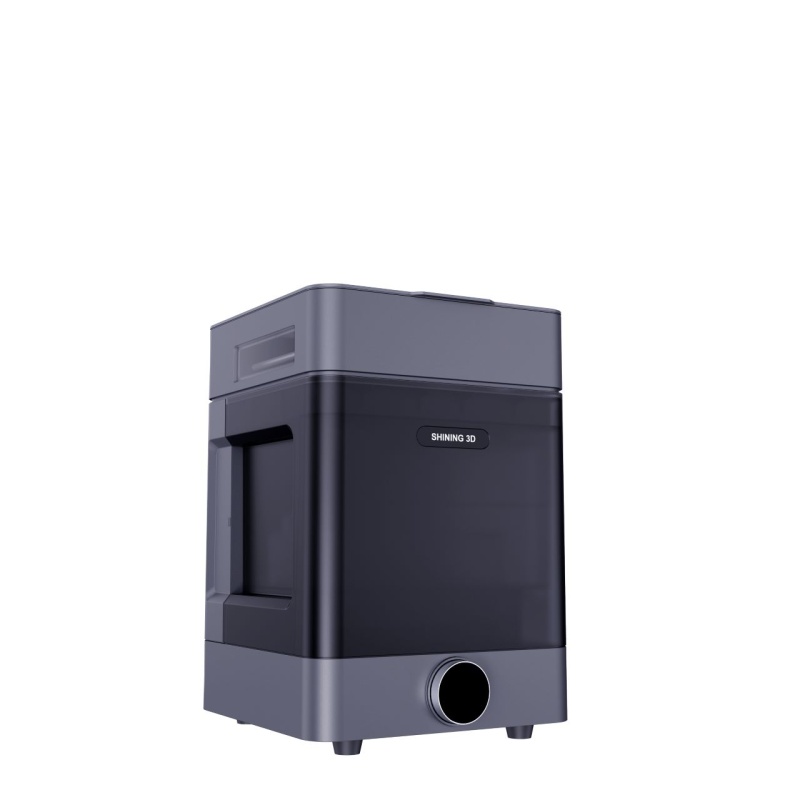

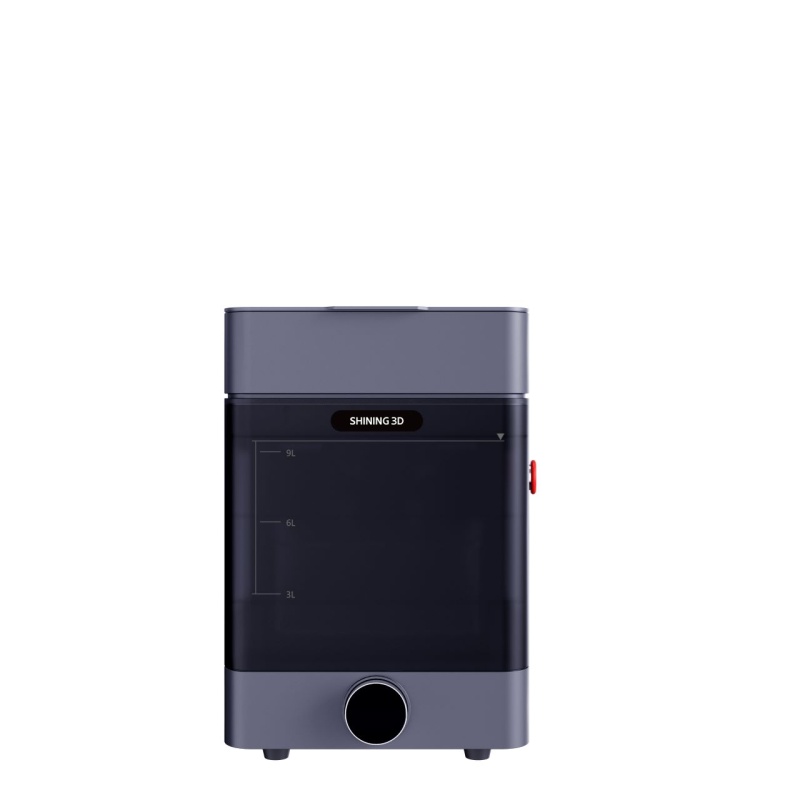

Shining3D FabWash

Smarter Post-Processing

• A consistent, automated workflow
• Automated part release
• One size fits all
• Never think about wash time settings again
• Easy to use, safeguards your workplace
• FabWash is the first fully automated, multi-stage part release, wash and dry system designed to deliver the ease of use, consistency, speed and cleanliness that modern dental 3D printing demands.

Shining3D FabWash Video

A CONSISTENT, AUTOMATED WORKFLOW

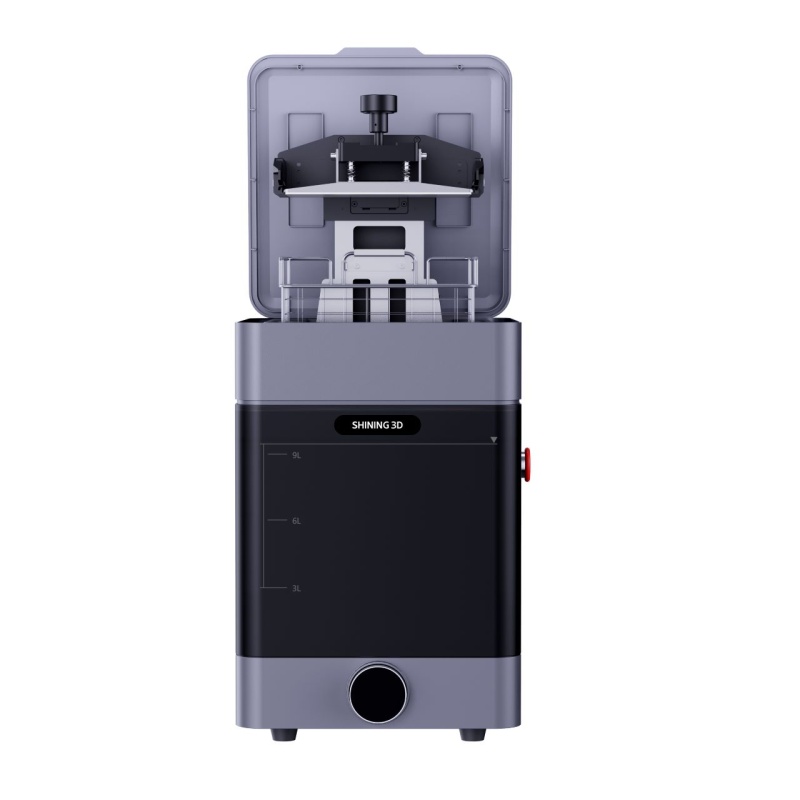

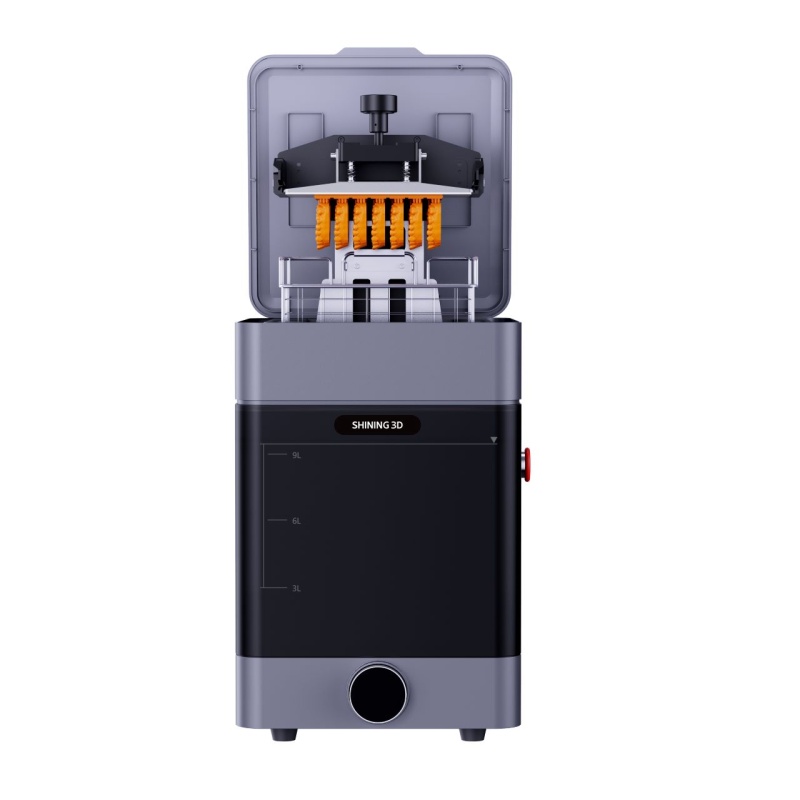

FabWash is pre-programmed for each material with an automated process of part release, washing and drying. Once the process is complete, FabWash automatically lifts the parts and build platform out of the solvent. The parts and build platform are ready when you are.

AUTOMATIC PART RELEASE

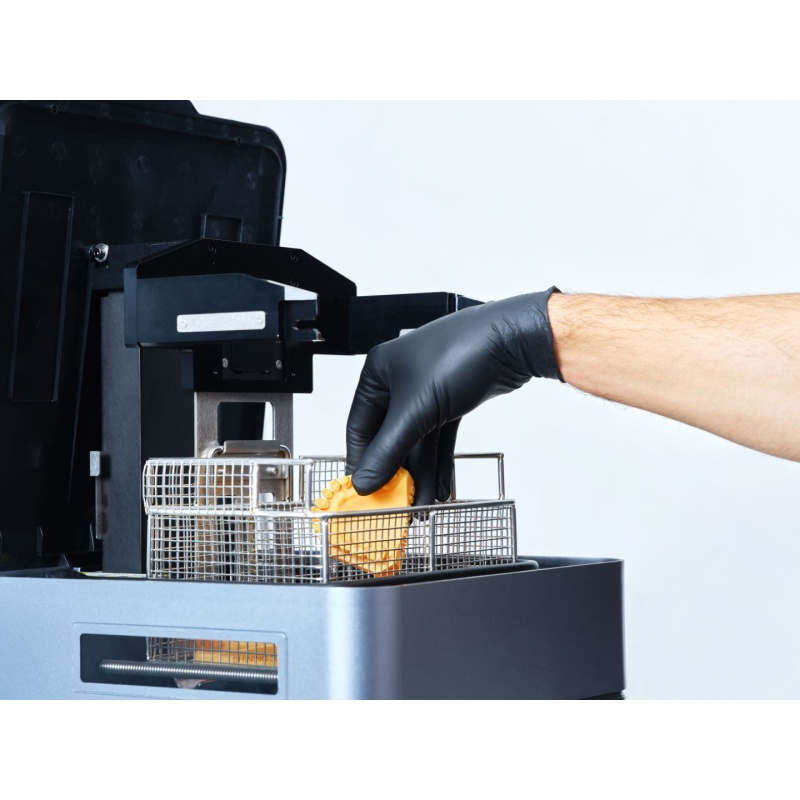

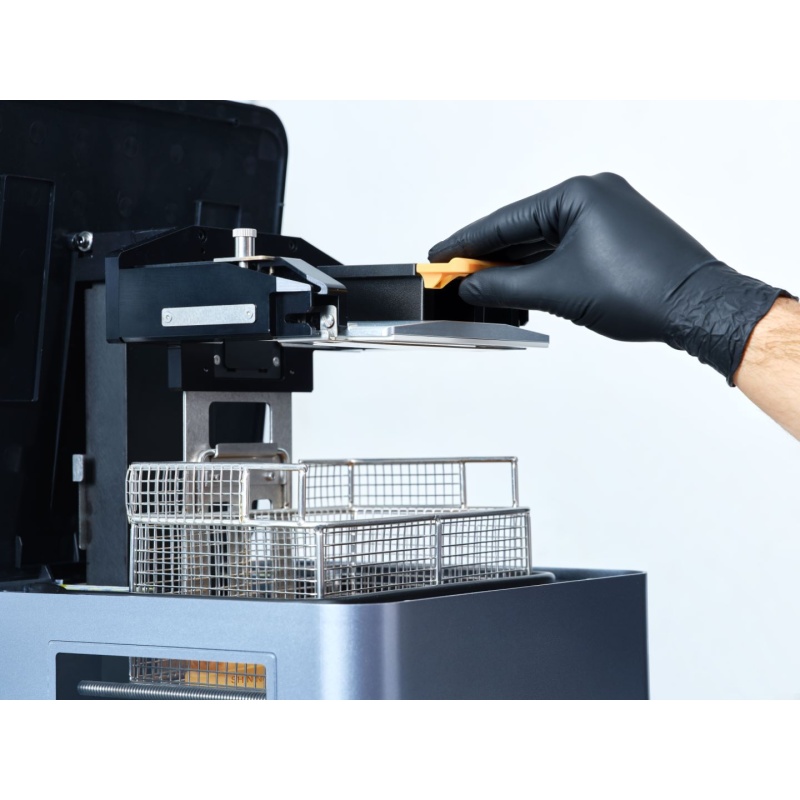

Inspired by the latest dental industry knowledge, FabWash is designed for instant part release, eliminating the risk of parts being damaged by conventional removal tools. FabWash prepares optimal motion logic for each material to provide superior, hassle-free part release.

ONE SIZE FITS ALL

Suitable for AccuFab-L4D/L4K build platforms or AccuFab-D1s build platforms with a separate build platform adapter.

NEVER THINK ABOUT SETTING THE WASH TIME AGAIN.

Use the pre-programmed wash settings or save your frequently used custom profiles to improve post-processing efficiency. FabWash is equipped with Wi-Fi, allowing over-the-air updates to deploy the latest firmware and material library.

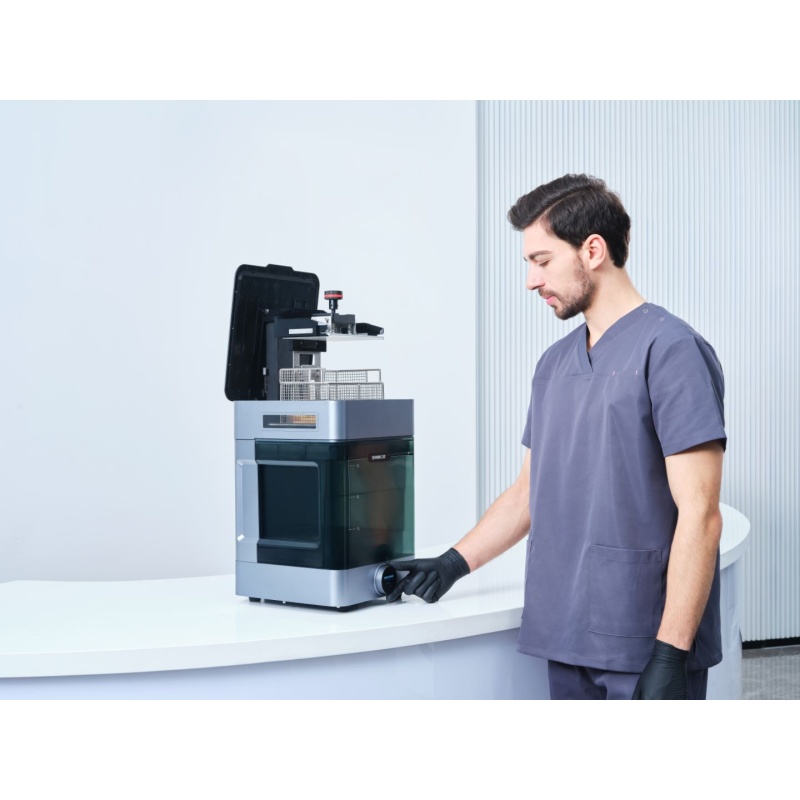

EASY TO USE, PROTECTS YOUR WORKPLACE

We know that one of the most valuable resources in a dental clinic is time. That's why we've ensured FabWash runs a high-speed cycle and that it's a breeze. If your staff can operate a smartphone, they can use Pro Wash/Dry with little training. And to reduce maintenance, we've used innovative, chemical-resistant materials.

Technical Data

Printer Compatibility: AccuFab-D1s, AccuFab-L4D/L4K
Product weight and dimensions: 15KG / 34*30.3*45 cm
Height when open: 75 cm
Volume of the bucket: 9.5L
Maximum part size: 199*124*180 mm
Suggested operating environment: 10~30℃ / 30%~70%RH
Suggested transportation environment: -10℃~70℃
Stirring method: Magnetically coupled impeller
Accessories included: washing bucket/washing basket/scraper/brush / the adapter / quick reference guide.
Power supply requirements: 100-240 V / 2.0A 50/60 Hz - 24 V / 150 W
Compatible solvent: > 75% alcohol, IPA, water
Connectivity: Wi-Fi

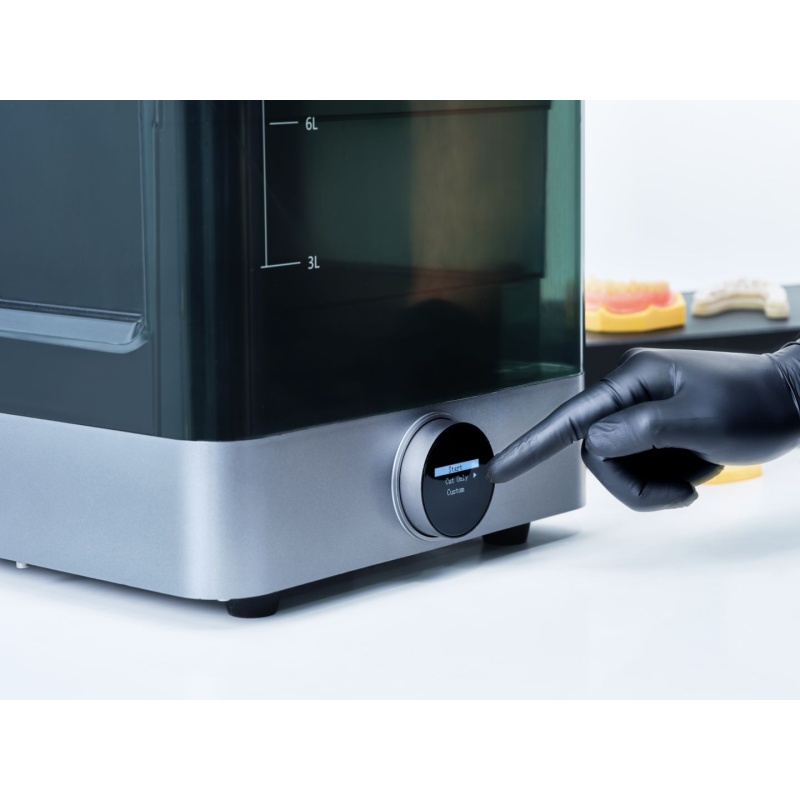

User controls:1.54 inch OLED & rotary knob
Safety Sensors: Automatic start/stop sensors; build platform detection sensor.
Solvent bucket detection sensor; Safety pressure sensor: emergency stop switch.
Product features: Automatic parts release function; Automatic predefined wash/dry function; User programmable wash/dry option.

• FabWash-EN-20230223-V0-3-1.pdf
